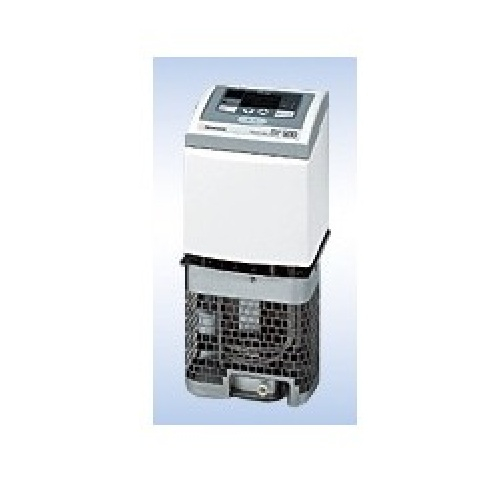

Yamato BF500 Multi-Function Constant Temperature Device 115V 10A/220V 5A

  • Brand Yamato
  • Part # BF500
Availability
Discontinued
Quantity
Share:

Multi-Function Immersion Type Constant Temperature Device, 115V 10A/220V 5A 50/60Hz

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
TypeMulti Function Type
Performance
Temp. Setting Range0 to 200deg.C
Operating Temp. RangeRoom Temp. +5 to 180deg.C*1
Temp. Control Accuracy±0.05 to 0.2deg.C*1(*1 Condition: Setting Temp. 100deg.C, Testing Bath BZ100D, Silicon Oil Stickiness 50cst)
Components
StirrerPropeller Stirring
HeaterStainless Pipe Heater 1kW
Temp. Control SystemPID Control by Micro Computer
Temp. SettingDigital Setting by Key

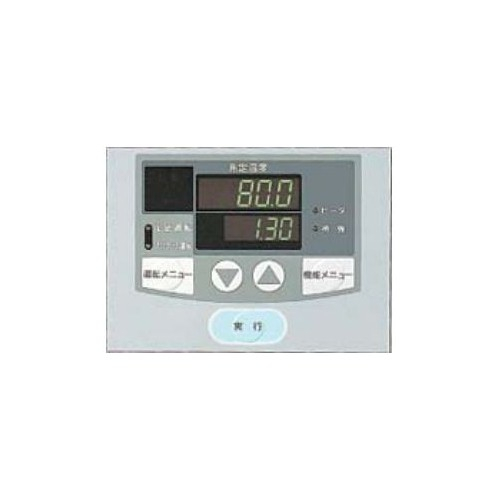

Temp. DisplayDigital Display by Green LED
Min. Digit Indication: 1deg.C
Indicated on Main Indicator(Sub-indicator: Indicate Setting Temp.)
Timer1min. to 99h.59min. or 100h. to 999h.
Timer Resolution1min. or 1h.
Operating FunctionFixed Operation: Continuous Operation by Set Temp., Quick Automatic StopProgramming Operation: 1 to 3 Optional Pattern, Max. 5 Segment Pattern (Repeating, Gradient Operation)
Additional FunctionTemp. Pre-setting (Memory/Recall 10 Temp.)Timer Function (to 49,999h.), Key Lock Function, Water Jet Strength Changeable Function (10 steps Changeable)
Pump Jet Angle Changeable
Temp. Output (10mV/deg.C),External Alarm Output,Time –up Output, External Communication Function (RS422A)
Heater Circuit ControlTriac Zero-cross Type
SensorThermsiter
Safety Device
Safety CountermeasureShelf Diagnosis Function (Automatic Overheat Prevention, Abnormal Temp. Sensor,Heater Wire Broken, Triac Short Circuit, Main Relay Defect), Circuit Protector, Float Type Empty Boiling Preventor, Buzzer Alarm for Abnormal Condition
Standard
External DimensionW140 x D138 x H305mm
Clamp Available ThicknessMax. 35mm
Power SourceAC 100V 50/60Hz 11A
WeightApprox. 7kg
Product Details
TypeMulti Function Type
Performance
Temp. Setting Range0 to 200deg.C
Operating Temp. RangeRoom Temp. +5 to 180deg.C*1
Temp. Control Accuracy±0.05 to 0.2deg.C*1(*1 Condition: Setting Temp. 100deg.C, Testing Bath BZ100D, Silicon Oil Stickiness 50cst)
Components
StirrerPropeller Stirring
HeaterStainless Pipe Heater 1kW
Temp. Control SystemPID Control by Micro Computer
Temp. SettingDigital Setting by Key
Temp. DisplayDigital Display by Green LED
Min. Digit Indication: 1deg.C
Indicated on Main Indicator(Sub-indicator: Indicate Setting Temp.)
Timer1min. to 99h.59min. or 100h. to 999h.
Timer Resolution1min. or 1h.
Operating FunctionFixed Operation: Continuous Operation by Set Temp., Quick Automatic StopProgramming Operation: 1 to 3 Optional Pattern, Max. 5 Segment Pattern (Repeating, Gradient Operation)
Additional FunctionTemp. Pre-setting (Memory/Recall 10 Temp.)Timer Function (to 49,999h.), Key Lock Function, Water Jet Strength Changeable Function (10 steps Changeable)
Pump Jet Angle Changeable
Temp. Output (10mV/deg.C),External Alarm Output,Time –up Output, External Communication Function (RS422A)
Heater Circuit ControlTriac Zero-cross Type
SensorThermsiter
Safety Device
Safety CountermeasureShelf Diagnosis Function (Automatic Overheat Prevention, Abnormal Temp. Sensor,Heater Wire Broken, Triac Short Circuit, Main Relay Defect), Circuit Protector, Float Type Empty Boiling Preventor, Buzzer Alarm for Abnormal Condition
Standard
External DimensionW140 x D138 x H305mm
Clamp Available ThicknessMax. 35mm
Power SourceAC 100V 50/60Hz 11A
WeightApprox. 7kg
Note

Note: Please read description carefully. Do not base your order on the picture presented.
