Buy Welch 411543, MP 201 T 33 l/min 1.5 Torr 1 Phase Standard Duty Diaphragm Pump

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Plug Type:: Plug Type: European & UK

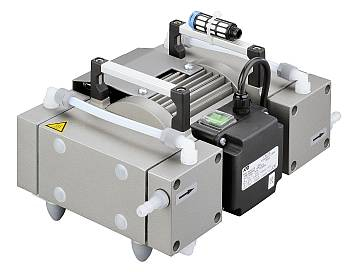

MP 201 T 33 l/min 1.5 Torr 1 Phase Standard Duty Diaphragm Pump with CE Mark & European/UK Plug, 220V, 50/60Hz

Applications:

Aqueous Vacuum Filtration
Air / Gas Sampling
Vacuum Chambers
Backing Pumps for Various Turbo Molecular Pumps
Analytical Technology
Mass Spectrometer
Vacuum Chucking
Parts Handling, Pick and Place Conveyor Lines

Note:

Every pump is supplied with ON/OFF switch and internal protective thermal switch for the motor, carry handle and vibration isolating feet and Exhaust silencer. Comes pre-assembled.

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Notifications

Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Reviews

Number of heads / stages	4 / 3
Free Air Displacement
m3/h (L/min)@50Hz	2.0 (33)
Ultimate pressure, mbar (torr)	2 (1.5)
Maximum Vacuum, in. Hg	29.9
IN / Ex hose connector	DN 8
Tubing Needed, I.D. mm (in.)	8 (0.32)
Intake (Exhaust) Thread NPT	1/4 (1/4)
Sound level. dB< (A)	45
Motor Power, watts (HP)	90 (0.12)
Type of motor protection, IP	54
Weight kg (lbs.)	10.3 (22.7)
Overall Dimensions
L cm (in.)	20 (7.9)
Wcm (in.)	26 (10.2)
H cmfin.)	15 (5.9)
Ship Weight, kg (lbs.)	13 (28.7)
Shipping Carton Dimensions L x W x H cm (in.)	41 x 26 x 25 (16.1 x 10.2 x 9.8)

Product Details

Number of heads / stages	4 / 3
Free Air Displacement
m3/h (L/min)@50Hz	2.0 (33)
Ultimate pressure, mbar (torr)	2 (1.5)
Maximum Vacuum, in. Hg	29.9
IN / Ex hose connector	DN 8
Tubing Needed, I.D. mm (in.)	8 (0.32)
Intake (Exhaust) Thread NPT	1/4 (1/4)
Sound level. dB< (A)	45
Motor Power, watts (HP)	90 (0.12)
Type of motor protection, IP	54
Weight kg (lbs.)	10.3 (22.7)
Overall Dimensions
L cm (in.)	20 (7.9)
Wcm (in.)	26 (10.2)
H cmfin.)	15 (5.9)
Ship Weight, kg (lbs.)	13 (28.7)
Shipping Carton Dimensions L x W x H cm (in.)	41 x 26 x 25 (16.1 x 10.2 x 9.8)

Note

Note: Please read description carefully. Do not base your order on the picture presented.
