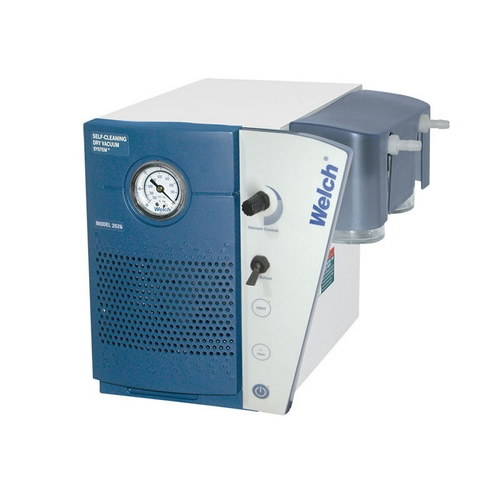

Welch 202601 Self-Cleaning Vacuum System w/ North America Plug

Welch, 202601, Self-Cleaning Vacuum System with North America Plug 115V, 1.8(29) Ultimate Pressure

Complete oil-free dry vacuum systems for rotary evaporators and concentrators. Corrosion-resistant PTFE diaphragm vacuum pump systems enable superior control and efficiency for each evaporation. Provides controlled solvent stripping in flasks up to 5 L. Use 2 torr Model 2026 for solvents with atmospheric B.P. <160°C - rapid DMF stripping at 4 ml/min. Includes analog gauge and vacuum regulation. Inlet and exhaust separators protect pump and lab atmosphere.

Features

• Automatic Self-cleaning purge maintains efficiency, extends diaphragm life
• Free air displacement: 35 L/min (1.2 CFM)
• Incremental ballast switch enables fast response to bumping / foaming

Applications

• Rotary Evaporator
  • Rotary evaporators are typically used to remove solvents following chemical reactions. Combined with gentle heat from the evaporator bath, controlled vacuum is used to bring solvents to boiling or near-boiling. Efficient solvent distillation requires vacuum balanced to achieve sufficient pressure reduction and molecular flow w/o losing sample or overrunning the condensing capabilities of your rotovap.
