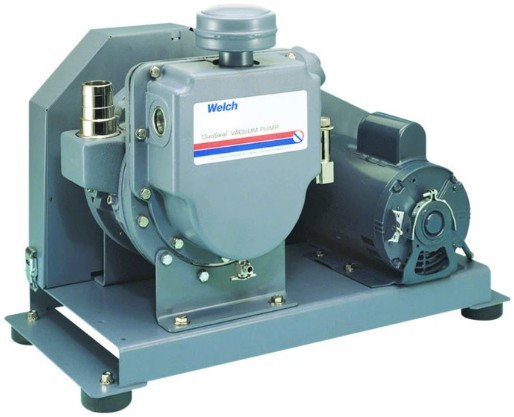

Welch 1397M-01 DuoSeal Pump, 230V, 60Hz 3Ph

  • Brand Welch
  • Part # 1397M-01
  • Model # DuoSeal
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
  • Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.
Share:

Features:

  • High contamination tolerance
  • Ultimate vacuum <0.001 Torr
  • Low RPM for long service life
  • On this 230/460 volt pump no plug is provided.

DuoSeal Vacuum Pump are known for their ruggedness world-wide. These pumps have large oil reservoirs to dilute contaminants. Low pump rpm to reduces friction and wear while minimizing reservoir temperature to lessen chemical reactivity

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Optional Accessories
Reviews
ApplicationsVacuum Ovens, Glove Boxes, General Laboratory Vacuum
TypeBelt-Drive Vacuum Pump
Free Air Displacement cfm (l/min.) 17.7 (500)
Ultimate Pressure1 x 10-4 (0.00013)
Pump RPM400
Oil Capacity1.25 (1.2)
Motor Horsepower (watts)1 (750)
Adjustable Vac. / Gas BallastYes
Tubing Needed1-5/8 (41)
Intake Thread NPT1-3/4 - 20 straight thread
Exhaust Thread NPT1 - 3/4 - 20 straight thread
Overall Dimensions LxWxH in. (cm)26 x 13.7 x 18.8 (66 x 34.8 x 47.6)
Ship Weight213
Shipping Carton Dimensions LxWxH in. (cm)27.3 x 18 x 22 (69.3 x 45.7 x 55.9)
Product Details
ApplicationsVacuum Ovens, Glove Boxes, General Laboratory Vacuum
TypeBelt-Drive Vacuum Pump
Free Air Displacement cfm (l/min.) 17.7 (500)
Ultimate Pressure1 x 10-4 (0.00013)
Pump RPM400
Oil Capacity1.25 (1.2)
Motor Horsepower (watts)1 (750)
Adjustable Vac. / Gas BallastYes
Tubing Needed1-5/8 (41)
Intake Thread NPT1-3/4 - 20 straight thread
Exhaust Thread NPT1 - 3/4 - 20 straight thread
Overall Dimensions LxWxH in. (cm)26 x 13.7 x 18.8 (66 x 34.8 x 47.6)
Ship Weight213
Shipping Carton Dimensions LxWxH in. (cm)27.3 x 18 x 22 (69.3 x 45.7 x 55.9)
