Vestil WTJ-E-15-3-AC Power Lift Jib Crane, 1500 lb

Type: without Winch
  • Brand Vestil
  • Part # WTJ-E-15-3-AC
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Type:
Type: without Winch

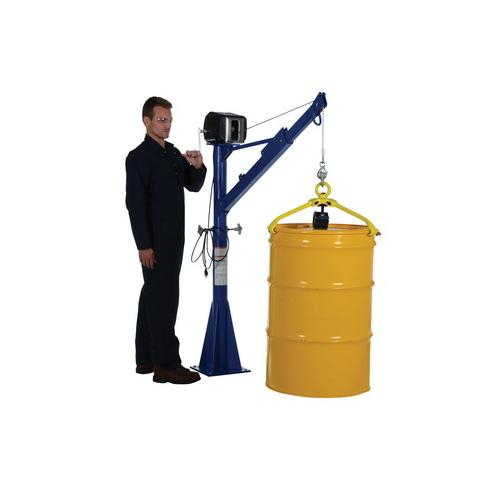

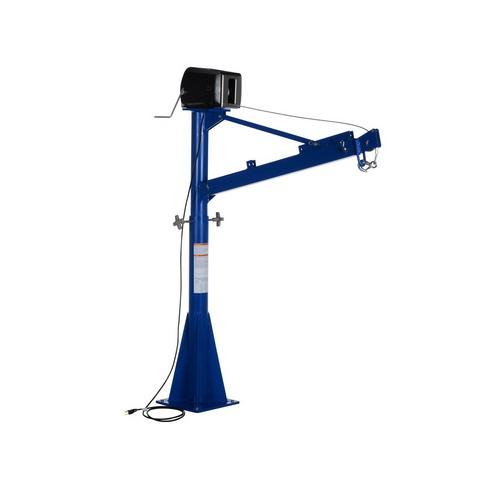

Vestil, WTJ-E-15-3-AC, Power Lift Jib Crane, 1500 lb, Blue

Features:

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360° swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy

A Power Lift Jib Crane is designed for material handling applications on docks, in warehouses or in truck beds. This lift jib crane is the economical answer to your material handling problems. It offers light-duty, intermittent use. Locking manual rotation. The cable has a swivel snatch block and safety latch. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
MaterialSteel
Uniform Capacity (pounds)1500
Boom Reach (in.)43-1/16 to 66-3/4
Boom Height (in.)47-1/8 to 73-5/16
Rotation (degrees)360
Boom Adjustment Increments (in.)12
Cable Length (feet)25
Cable Diameter (in.)7/32
AC (volts)115
Horsepower (HP)1/3
Mounting Plate Length (in.)12
Mounting Plate Width (in.)12
Boom Extension (in.)36
Capacity at 64-3/4" Fully Extended (lbs.)650
Capacity at 73-5/16" Fully Retracted (lbs.)1500
Capacity at 73-5/16" Mid-Position (lbs.)1150
Capacity at 73-5/16" Fully Extended (lbs.)800
Assembly RequiredNo
Notes

***

warningWARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details
MaterialSteel
Uniform Capacity (pounds)1500
Boom Reach (in.)43-1/16 to 66-3/4
Boom Height (in.)47-1/8 to 73-5/16
Rotation (degrees)360
Boom Adjustment Increments (in.)12
Cable Length (feet)25
Cable Diameter (in.)7/32
AC (volts)115
Horsepower (HP)1/3
Mounting Plate Length (in.)12
Mounting Plate Width (in.)12
Boom Extension (in.)36
Capacity at 64-3/4" Fully Extended (lbs.)650
Capacity at 73-5/16" Fully Retracted (lbs.)1500
Capacity at 73-5/16" Mid-Position (lbs.)1150
Capacity at 73-5/16" Fully Extended (lbs.)800
Assembly RequiredNo
Note

Note: Please read description carefully. Do not base your order on the picture presented.
