Vestil PM5-2748-DMHB Pallet Truck with Dead Man Brake

  • Brand Vestil
  • Part # PM5-2748-DMHB
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

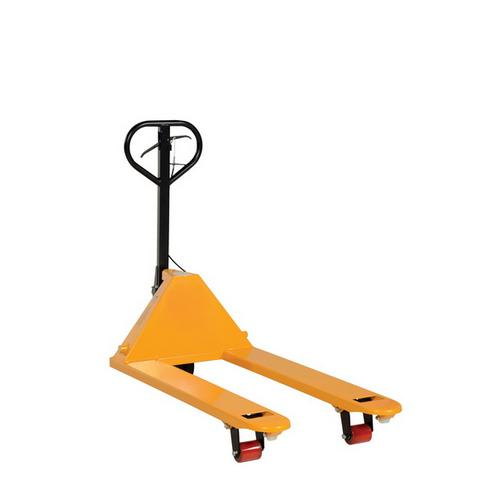

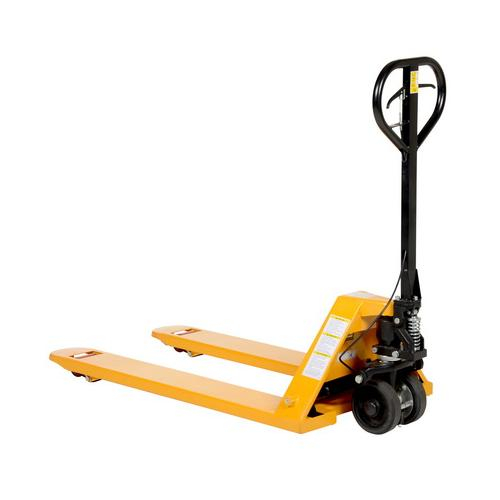

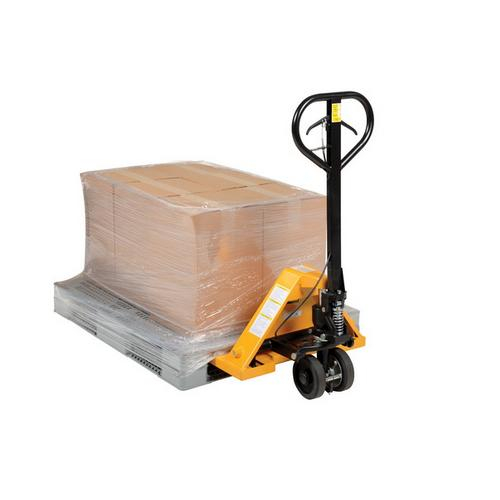

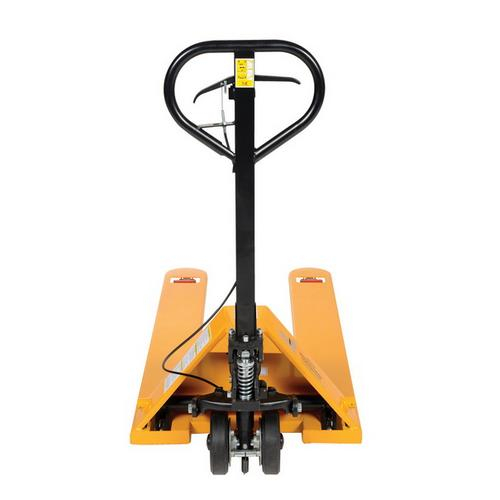

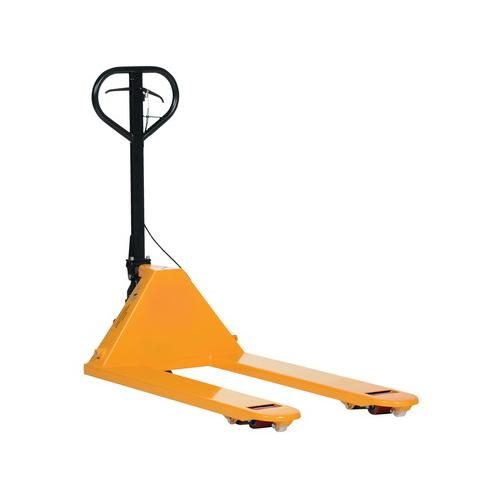

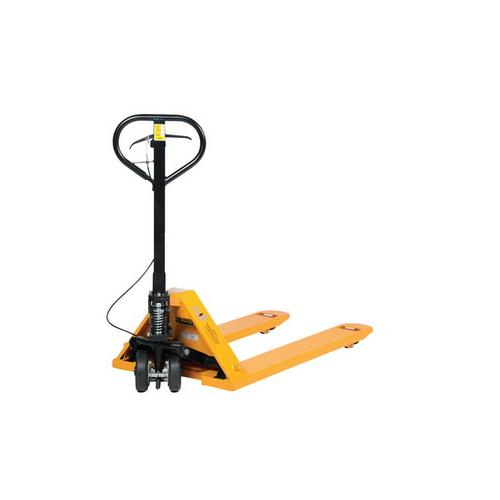

Vestil, PM5-2748-DMHB, Pallet Truck with Dead Man Brake 5.5k 27" x 48"

The Full Featured Pallet Truck is an economical way for one person to move heavy pallet loads without the use of a fork truck! Includes two (2) articulating steering wheels and two (2) front load rollers. The ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded. Steering wheels include bearing dust covers for added life. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. The unit is equipped with internally mounted solid steel adjustable push rods. The spring loaded handle automatically returns to vertical position when not in use. Hydraulic pump design facilitates easy-access seal replacement. Chrome-plated hydraulic pump piston for long seal life.

Features

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life
See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Uniform Capacity (lbs.)5500
Overall Fork Width (in.)27
Overall Fork Length (in.)48
Lowered Height (in.) 2-7/8
Raised Height (in.) 7-3/4
Individual Fork Width (in.)7
Steer Caster Material Poly-On-Steel
Steer Caster Diameter (in.)7
Steer Caster Width (in.)2
Load Roller Material Polyurethane
Load Roller Diameter (in.)3
Load Roller Width (in.)4
Assembly Required No
Notes

***

warningWARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details
Uniform Capacity (lbs.)5500
Overall Fork Width (in.)27
Overall Fork Length (in.)48
Lowered Height (in.) 2-7/8
Raised Height (in.) 7-3/4
Individual Fork Width (in.)7
Steer Caster Material Poly-On-Steel
Steer Caster Diameter (in.)7
Steer Caster Width (in.)2
Load Roller Material Polyurethane
Load Roller Diameter (in.)3
Load Roller Width (in.)4
Assembly Required No
Note

Note: Please read description carefully. Do not base your order on the picture presented.
