Buy Vestil JIB-P-10-6-6, Multi Station Jib Crane, Trans

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Size:: Size: 85" x 88"

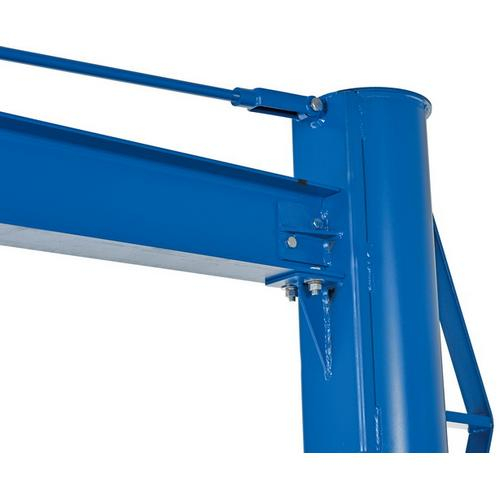

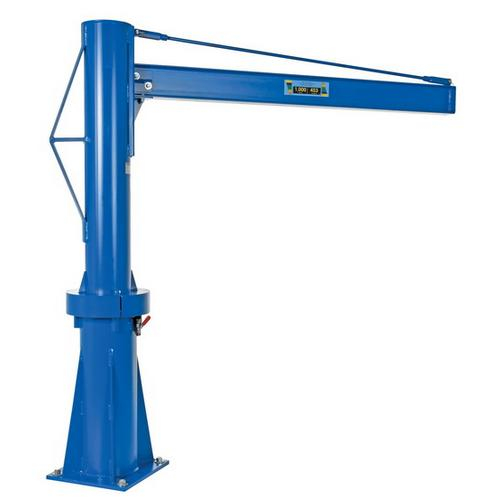

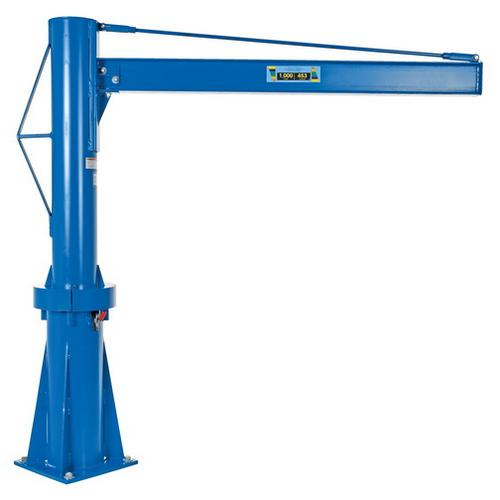

A Multi-Station Transportable Jib Crane is designed for use in multiple locations, includes jib crane and one base socket. Extra base sockets may be purchased for use in other locations. Friction brake design allows positive locking and controlled rotation of heavy loads. Standard six (6) inch high I-beam with three (4) inch flange width. Rugged welded steel construction. Requires reinforced concrete pad for installation. Hoist and trolley sold separately.

Features:

Unique Jib designed can be used in multiple locations

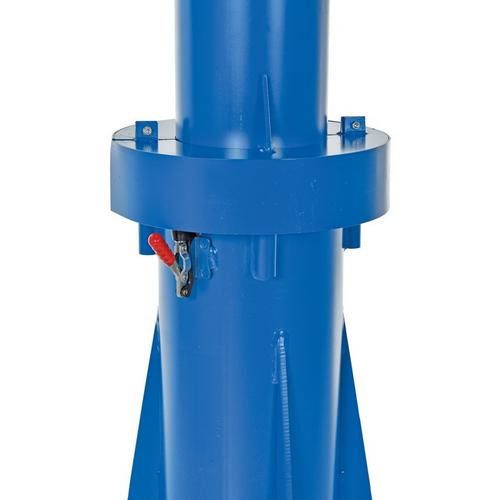

Friction brake design allows positive locking and controlled rotation of heavy loads
Arm manually rotates 360° for maximum versatility
Rugged welded steel construction provides long lasting use

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Material	Steel
Uniform Capacity (pounds)	1,000
Overall I-Beam Span (in.)	72
I-Beam (Flange x Height) (in.)	4.00 x 6
Rotation (degrees)	360
Mounting Plate Width/Length (in.)	17 x 17
Boom Reach (in.)	67-3/4
Usable Boom Height (in.)	71-13/16
Assembly Required	No

Notes

***

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details

Material	Steel
Uniform Capacity (pounds)	1,000
Overall I-Beam Span (in.)	72
I-Beam (Flange x Height) (in.)	4.00 x 6
Rotation (degrees)	360
Mounting Plate Width/Length (in.)	17 x 17
Boom Reach (in.)	67-3/4
Usable Boom Height (in.)	71-13/16
Assembly Required	No
