Buy Vestil CJIB-3, Mini Overhead Cantilever Jib, 300Lb

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Capacity:: Capacity: 300Lb

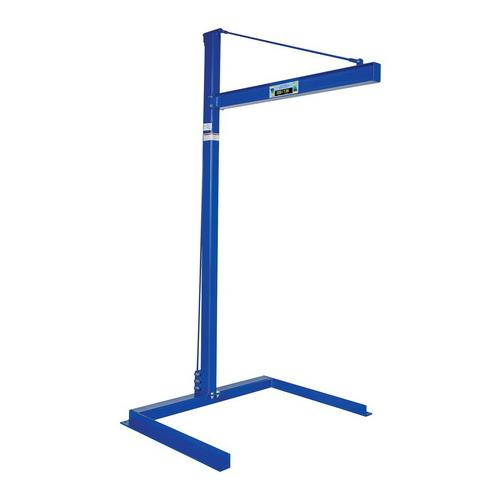

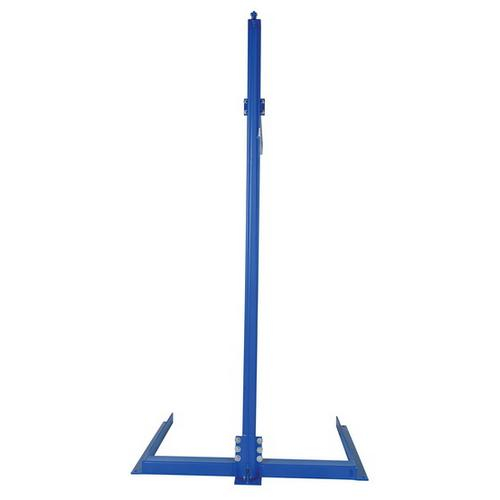

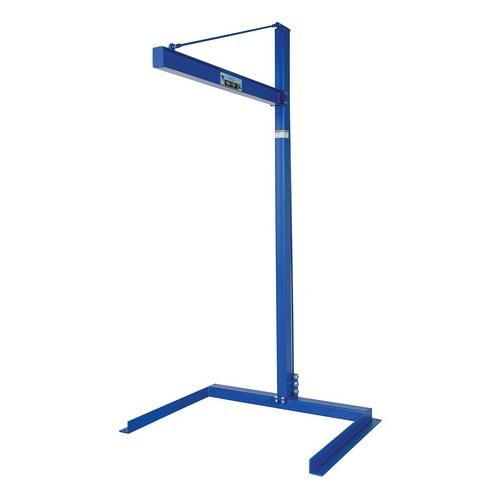

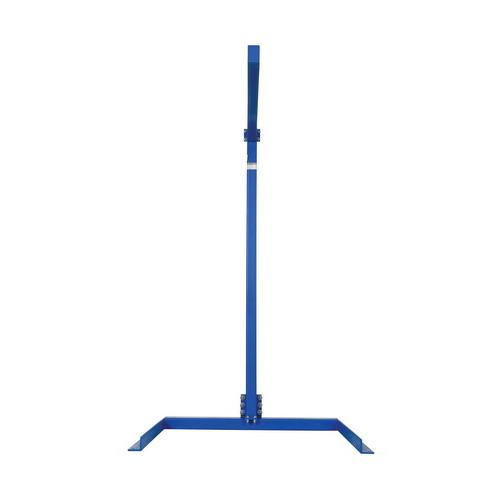

This unique Mini Overhead Cantilever Jib works well in cells and work areas. The unique design allows for outriggers to be mounted underneath a work bench. Easily lift product from cart to workbench. Hoist, trolley and cart not included. Steel construction with painted blue finish.

Features

Works well in cells and work areas
Design allows to be mounted underneath a work bench
Easily lift product from cart to workbench
Steel construction with a painted blue finish

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Material	Steel
Uniform Capacity (pounds)	300
Under I-Beam to Ground Length (in.)	84
I-Beam (Flange x Height) (in.)	2.66 x 4
I-Beam Usable Length (in.)	54
Straddle Width Inside Diameter (in.)	47-3/4
Outrigger Length (in.)	39-3/4
Operation Mode	Manual
Base Plate Width (in.)	2-1/2
Base Plate Length (in.)	39-3/4
Base Plate Mounting Holes	4
Mounting Hole Diameter (in.)q	13/16
Plate Thickness (in.)	3/8
Assembly Required	No

Notes

***

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details

Material	Steel
Uniform Capacity (pounds)	300
Under I-Beam to Ground Length (in.)	84
I-Beam (Flange x Height) (in.)	2.66 x 4
I-Beam Usable Length (in.)	54
Straddle Width Inside Diameter (in.)	47-3/4
Outrigger Length (in.)	39-3/4
Operation Mode	Manual
Base Plate Width (in.)	2-1/2
Base Plate Length (in.)	39-3/4
Base Plate Mounting Holes	4
Mounting Hole Diameter (in.)q	13/16
Plate Thickness (in.)	3/8
Assembly Required	No

Note

Note: Please read description carefully. Do not base your order on the picture presented.
