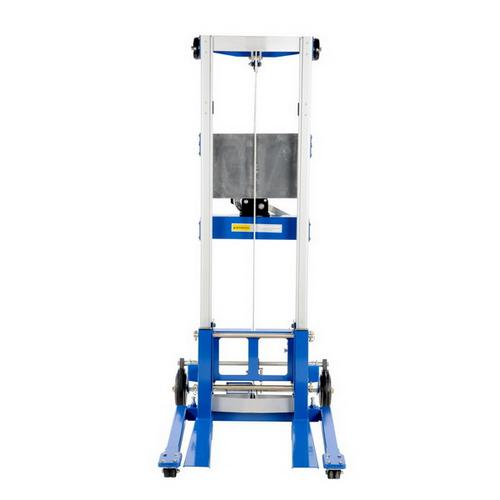

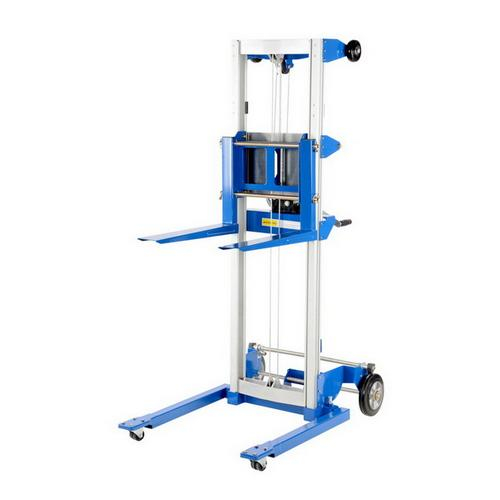

Vestil A-LIFT-S-HP Winch Lift Truck Adjustable Straddle

Capacity: 400Lb
  • Brand Vestil
  • Part # A-LIFT-S-HP
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
  • Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.
Share:

Options and Related Products

Capacity:
Capacity: 400Lb

Vestil, A-LIFT-S-HP, Winch Lift Truck Adjustable Straddle 400Lb

The Hand Winch Lift Truck is compact and designed to lift material to and from shelves, move office equipment, and install ceiling/wall appliances. It's constructed of durable steel-and-aluminum. Operated by a hand-crank winch that features a reversible handle and hold-down device for securing the carriage during transport. The non-adjustable forks can be inverted to provide different height ranges.

Features

  • Lightweight portable lifts are great for hundreds of applications
  • Manual cable winch easily raises and lowers forks
  • Counterbalance weight design keeps unit from tipping with heavy loads
  • Hold-down device secures carriage during transport
See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Material Aluminum/Steel
Uniform Capacity (lbs.)400
Lowered Height (in.) 1-1/4 / 21-1/4
Raised Height with Forks Down (in.) 98-7/16
Raised Height with Forks Up (in.)120
Fork Width (in.)4
Fork Height (in.) 1-3/4
Fork Length (in.) 22-7/16
Outside Diameter (in.) 20-7/8
Fork Raise per Hand Crank Rotation (in.)1
Rear Non-Marking Wheel Diameter (in.)8
Front Swivel Wheel Diameter (in.)2
Inside Straddle Width (in.) 21-3/4 - 36-1/4
Outside Straddle Width (in.) 29 - 43-7/8
Design Straddle
Assembly Required Yes
Notes

***

warningWARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details
Material Aluminum/Steel
Uniform Capacity (lbs.)400
Lowered Height (in.) 1-1/4 / 21-1/4
Raised Height with Forks Down (in.) 98-7/16
Raised Height with Forks Up (in.)120
Fork Width (in.)4
Fork Height (in.) 1-3/4
Fork Length (in.) 22-7/16
Outside Diameter (in.) 20-7/8
Fork Raise per Hand Crank Rotation (in.)1
Rear Non-Marking Wheel Diameter (in.)8
Front Swivel Wheel Diameter (in.)2
Inside Straddle Width (in.) 21-3/4 - 36-1/4
Outside Straddle Width (in.) 29 - 43-7/8
Design Straddle
Assembly Required Yes
Note

Note: Please read description carefully. Do not base your order on the picture presented.
