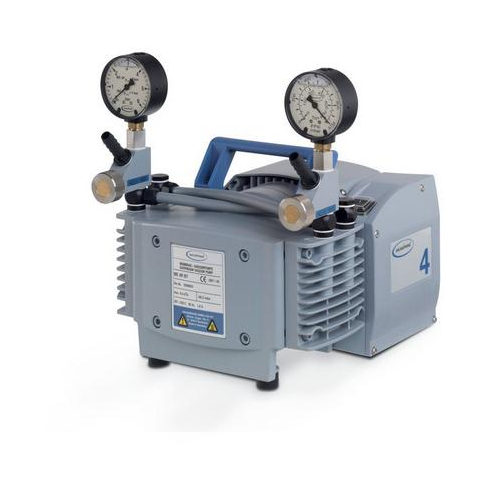

Buy Vacuubrand 20731103, ME 4R NT Diaphragm Pump, US Plug

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

BrandTech® is the official distribution arm for the US and Canada of the VACUUBRAND products.

This one-stage diaphragm pump works as a vacuum generator and as well as a compressor. All parts in contact with pumped media are made of aluminum and selected plastics (PTFE diaphragms and valves). They enable a wide range of applications for non-corrosive gases. The inlet and outlet connections of the ME 4R NT are equipped with regulator valves for vacuum and overpressure, respectively. Both the compression pressure and vacuum level can be adjusted. Inlet vacuum level and outlet pressure are indicated by manometers.

Features:

Contamination-free pumping, evacuation and compression
High flow rate even near ultimate vacuum
Adjustment of outlet pressure and vacuum level with regulator valves
Very low vibration
Exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Reviews

Vacuum controller	Manometer
Number of heads / stages	2 / 1
Max. pumping speed at 50/60 Hz	3.8 / 4.2 m3/h
Max. pumping speed at 50/60 Hz	2.2 / 2.5 cfm
Ultimate vacuum (abs.)	100 / 75 mbar/torr
Ambient temperature range (operation)	10 - 40 °C
Ambient temperature range (storage)	-10 - 60 °C
Max. back pressure (abs.)	4 bar
Inlet connection	Hose nozzle DN 8-10 mm
Outlet connection	Hose nozzle DN 8-10 mm
Rated motor power	0.18 kW
Rated motor speed at 50/60 Hz	1500/1800 min-1
Degree of protection	IP 40

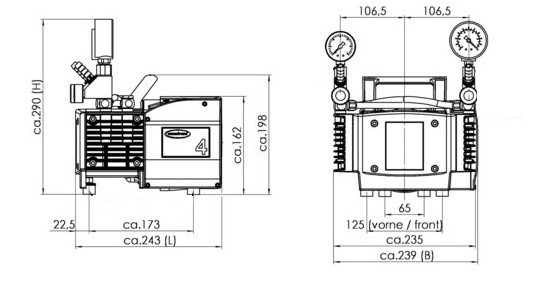

Dimensions (L x W x H)	243 x 239 x 290 mm
Weight	11.5 kg
Noise level at 50 Hz, typ.	45 dBA
NRTL certification	Canada and the USA

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Vacuum controller	Manometer
Number of heads / stages	2 / 1
Max. pumping speed at 50/60 Hz	3.8 / 4.2 m3/h
Max. pumping speed at 50/60 Hz	2.2 / 2.5 cfm
Ultimate vacuum (abs.)	100 / 75 mbar/torr
Ambient temperature range (operation)	10 - 40 °C
Ambient temperature range (storage)	-10 - 60 °C
Max. back pressure (abs.)	4 bar
Inlet connection	Hose nozzle DN 8-10 mm
Outlet connection	Hose nozzle DN 8-10 mm
Rated motor power	0.18 kW
Rated motor speed at 50/60 Hz	1500/1800 min-1
Degree of protection	IP 40
Dimensions (L x W x H)	243 x 239 x 290 mm
Weight	11.5 kg
Noise level at 50 Hz, typ.	45 dBA
NRTL certification	Canada and the USA
