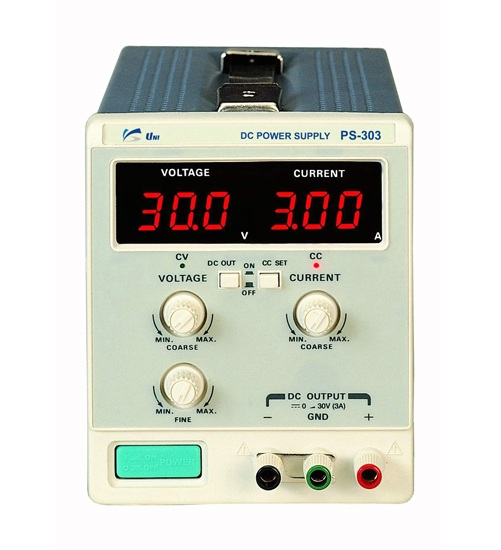

Unisource PS-303 PS Series 30V/3A Single Output DC Power Supply

Max Voltage/Current: 30V/3A
  • Brand Unisource
  • Part # PS-303
  • Model # PS Series
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Max Voltage/Current:
Max Voltage/Current: 30V/3A

Switching DC Power Supply

Features

  • Built-in digital numeric display (3 DIGIT RED LED)
  • Variable power up to 30V DC
  • Variable current up to 3A
  • Compact size and light weight
  • Low Power Consumption
  • Built-in current limiting circuit
  • Large, easy to read analog metering
  • Low ripple < 2mVrms
  • Output polarity (+), (-), GND, positive or negative
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Max. RatingVoltage30V
Current3A
Constant Voltage Operation
Voltage Output0~30V
Line Regulation8mV
Load Regulation8mV
Ripple 0.5mV rms, 4mV P-P
Constant Current Operation
Input Regulation4mA
Load Regulation10mA
Ripple & Noise3mA rms
Digital Meter Indication
Voltmeter IndicationMax 99.9V, fixed range
Accuracy± (0.2% rdg + 2digits)
Ammeter IndicationMax 99.9V, fixed range
Accuracy± (1.0% rdg + 3digits)
Insulation ResistanceBetween Chassis and Input Power SupplyDC500V 30MΩ
Between Chassis and Output TerminaDC500V 20MΩ
Output Polarity+(RED), -(BLACK), GND(GREEN), positive or negative grounding is possible
Operating Temp. and Humidity Range 0 ~ 35°C, 10 ~ 80% RH
Storage Temp. and Humidity Range-20 ~ 60°C, 10 ~ 85% RH
Ground Proof Voltage±200V
Input Power Supply (Voltage fluctuation within 10%) AC115V/230V selectable
Dimensions & Weight 124 x 160 x 326mm Approx. 5Kg
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Max. RatingVoltage30V
Current3A
Constant Voltage Operation
Voltage Output0~30V
Line Regulation8mV
Load Regulation8mV
Ripple 0.5mV rms, 4mV P-P
Constant Current Operation
Input Regulation4mA
Load Regulation10mA
Ripple & Noise3mA rms
Digital Meter Indication
Voltmeter IndicationMax 99.9V, fixed range
Accuracy± (0.2% rdg + 2digits)
Ammeter IndicationMax 99.9V, fixed range
Accuracy± (1.0% rdg + 3digits)
Insulation ResistanceBetween Chassis and Input Power SupplyDC500V 30MΩ
Between Chassis and Output TerminaDC500V 20MΩ
Output Polarity+(RED), -(BLACK), GND(GREEN), positive or negative grounding is possible
Operating Temp. and Humidity Range 0 ~ 35°C, 10 ~ 80% RH
Storage Temp. and Humidity Range-20 ~ 60°C, 10 ~ 85% RH
Ground Proof Voltage±200V
Input Power Supply (Voltage fluctuation within 10%) AC115V/230V selectable
Dimensions & Weight 124 x 160 x 326mm Approx. 5Kg
Note

Note: Please read description carefully. Do not base your order on the picture presented.
