UEi, DL599-N, Wireless TRMS Power Clamp Meter w/ 3-Phase Rotation Tests, NIST Certificate

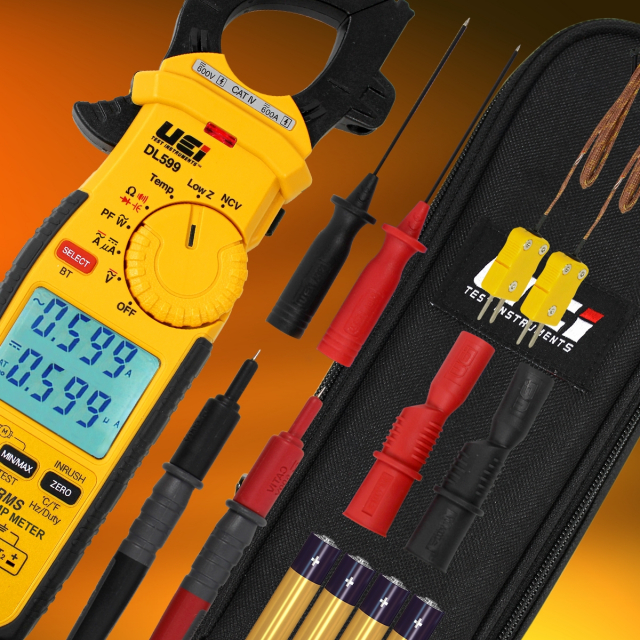

DL599-N Includes Only:
- TRMS Clamp Meter
- Free App (Android™ and iOS®)
- Silicone Test Leads (ATL58)
- Back Probe Leads (ABP3)
- Alligator Clips (AAC3)
- 2 Thermocouples (ATT29)
- Batteries 4 (AAA)
- Soft Case (AC560)
- Manual
Features:
- Min/Max/Avg
- Hold
- Visible high-voltage alert
- Auto Volts & Amp selection
- Backlit Dual Display and Worklight

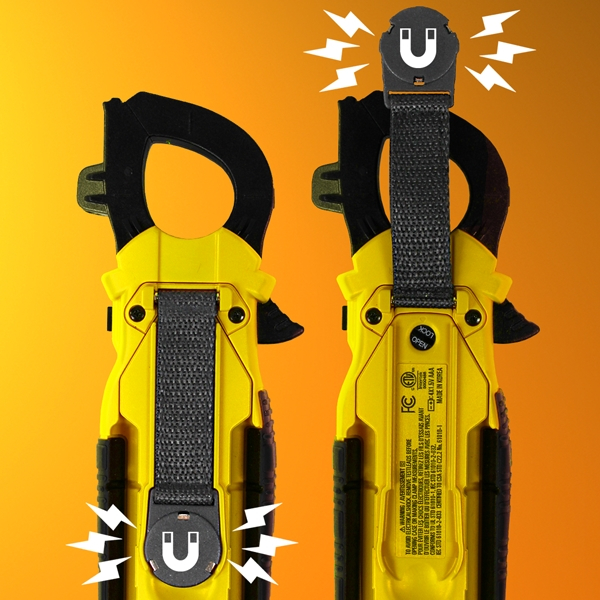

- Built-in Magnet w/ hanging strap
- Auto/Manual ranging
- Input Jack Lock
- Battery compartment latches
- Test Lead Storage
- Over molded grip
- Auto calibration
- Auto Power Off
- Low Battery Indicator
Functions:
- Power Factor
- Active Power (W)
- Apparent Power (VA)
- Reactive Power (VAr)
- 3-Phase Motor Rotation Indication
- Motor Unbalanced Test
- Low Pass Filter
- 1000V AC/DC
- 600A AC/DC
- 2000µA DC
- 60MΩ Resistance
- Capacitance 9999µF
- Diode/Continuity
- Temperature: -342° to 2462°F
- Frequency/Duty Cycle
- LRA Inrush
- Low Z
- NCV Detection
Application:
- Easily identify if a system's component is operating at peak efficiency or begining to degrade.
- Test 3-Phase motor rotation, unbalanced load, mini-splits, circuits in Molex plugs, and diode malfunctions.

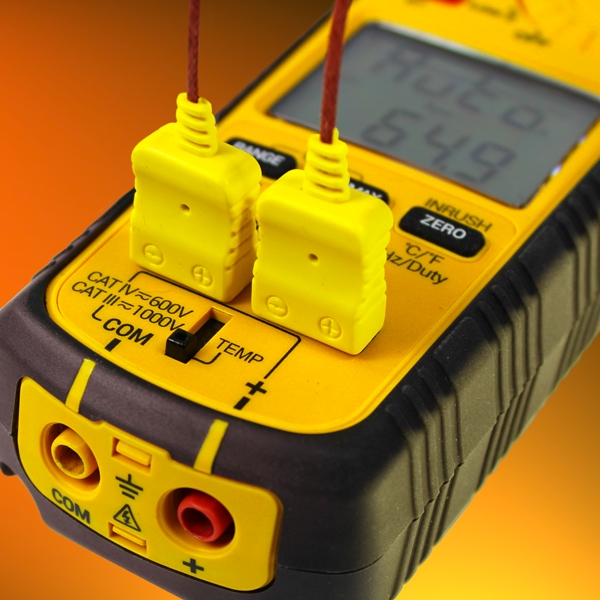

- Measures capacitance, voltage, microamps, circuit continuity, resistance, and temperature via K-Type thermocouples.
- Flame sensing. Check system boards and live wires.
The UEi DL599 is an award-winning wireless 600A True-RMS HVAC/R clamp meter now offering Power Factor and Watt measurements. This flagship solution can wirelessly connect to a free App for logging, graphing and emailing results and features a 600A clamp capable of AC/DC amps and frequency readings. Each meter includes a set of silicone test leads, 2 K-Type thermocouples, threaded back probes for testing molex connectors, threaded alligator clips for hands-free testing, and a zippered carrying pouch.
The DL599 is safety rated at CAT IV 600V / CAT III 1000V and offers full HVAC functionality including preventative motor testing. The motor diagnostics suite includes a 3-phase motor rotation test, unbalanced current/voltage tests to determine a motor's load efficiency, Low Z (low impedance) to improve accuracy by reducing ghost voltages, and a Low Pass Filter to screen out unwanted higher frequencies from Variable Frequency Drives.
