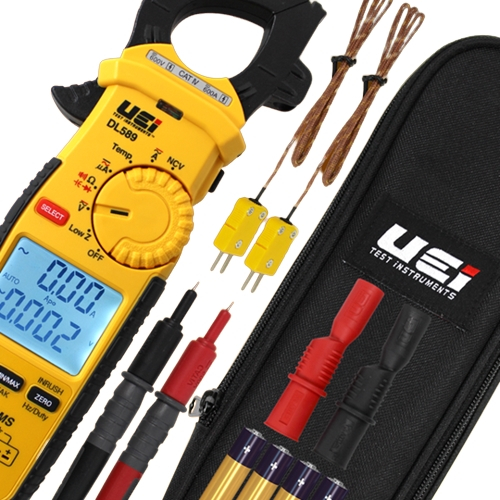

UEi DL589 600A TRMS Clamp Meter

Package: Standard Kit
  • Brand UEi
  • Part # DL589
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Package:
Package: Standard Kit

DL589 Includes Only:

  • Manual (Eng) Yes
  • Test Leads Silicone ATL58
  • Alligator clips AAC3
  • Back Probes ABP3 (2)
  • Batteries AAA (4)
  • Pouch/Cases Zippered
  • Temp Probe ATT29 (2)
  • K-Type thermocouples Yes

Features:

  • Hold Yes
  • Min/Max Yes
  • Ranging Auto/Manual
  • Auto power off Yes
  • Display count 6000
  • Low battery warning Yes
  • Backlight Yes
  • Dual display Yes
  • Worklight Yes
  • Temperature Inputs K-Type
  • Temperature differential Yes
  • DC Zero Yes
  • Protective boot or overmolding Yes
  • Magnetic mount Yes
  • Audible and visual alerts Yes
  • K-type input Yes
  • Probe/Lead storage Yes
  • Digital Yes

The DL589 is an TRMS HVAC/R Clamp Meter It has functions like AC/DC voltage, AC/DC amps, AC/DC microamps, resistance, capacitance, frequency and duty cycle.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Optional Accessories
Reviews
TRMSYes
AC Volts750VAC
DC Volts1000VDC
AC current (amps)600A AC
DC current (amps)600A DC
AC micro current (amps)2000uA
DC micro current (amps)2000uA
Resistance (Ohms)60MOhms
Capacitance (Farads)6000uF
Frequency (Hertz)99.99kHz
Duty cycle1.0 to 99.0%
Temperature-328 deg to 2462 deg F
ContinuityYes
DiodeYes
NCV DetectionYes
Differential TemperatureYes
K-type Temperature Range-328 deg to 2462 deg F
LRA InrushYes
Low ZYes
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
TRMSYes
AC Volts750VAC
DC Volts1000VDC
AC current (amps)600A AC
DC current (amps)600A DC
AC micro current (amps)2000uA
DC micro current (amps)2000uA
Resistance (Ohms)60MOhms
Capacitance (Farads)6000uF
Frequency (Hertz)99.99kHz
Duty cycle1.0 to 99.0%
Temperature-328 deg to 2462 deg F
ContinuityYes
DiodeYes
NCV DetectionYes
Differential TemperatureYes
K-type Temperature Range-328 deg to 2462 deg F
LRA InrushYes
Low ZYes
