The traveler slides along the wire rope and moves hands-free. It is an automated crossing slider and can be connected at any point on the lifeline. Includes a secure opening with 2 distinct manipulations required.
The travsmart traveler is the only means for connecting a user to the travsmart system.

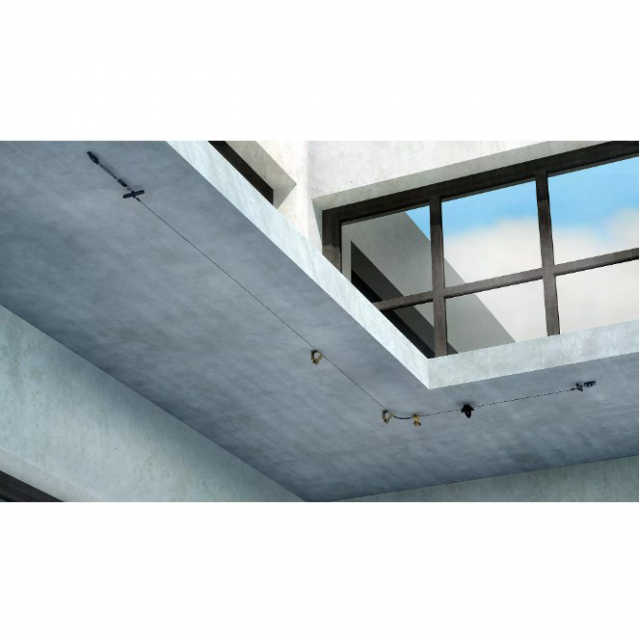

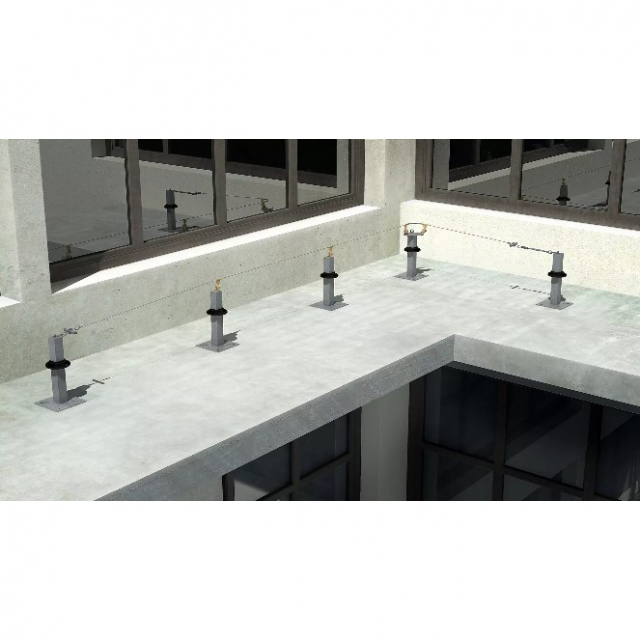

The travsmart HLL system provides smooth travel allowing the traveler to move freely over intermediate anchors, minimizing wear, and eliminates user assistance. The user's hands remain free to accomplish whatever task is required. The system can be secured to walls, overhead, under an inclined surface, on ground and on posts. In the event of a fall, there is no need to fully dismantle the lifeline.
Travsmart should be used as part of a complete personal fall arrest system installation shall be performed under the supervision of a qualified person.
Features
- Martensitic stainless steel grade 431
- Automatic anchor crossing with the use of the travsmart traveler
- 1.45 lbs. (658 g)
Applications
- Building maintenance
- Aircraft hangers
- Bridges and viaducts
- Oil and gas installationns
- Distribution facilities
- Overhead cranes
- Industrial plants
Applicable standards:
- OSHA 1910, subpart D: Walking and working surfaces
- OSHA 1926, subpart M: Fall protection
- ANSI Z359.6-2016: Specifications and design requirements for active fall protection systems
- ANSI A10.32-2012: Personal fall protection used in construction and demolition operations
- CSA Z259.13-04 (2009): Flexible horizontal lifeline system
- CSA Z259.16-04 (2009): Design of active fall protection systems
