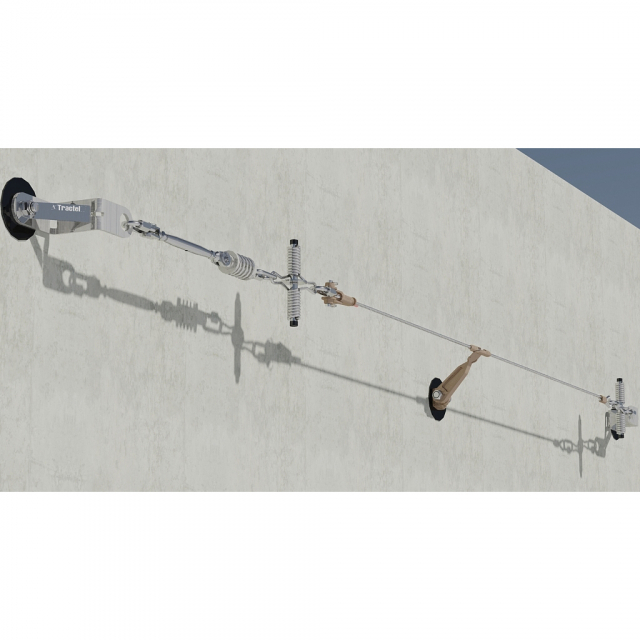

The travflex 2 has been specially made for rooftop structures built in metal panels or concrete.
The travflex 2 is a single-cable horizontal lifeline system that is easy to install and can allow up to three users. The system is installed on custom interface plates when installed on roof metal panels. It is a hands-free system that does not require special training or tools for installation. The system comes with a visual tension indicator and an in-line INRS energy absorber.
The travflex 2 single-cable system provides a smooth travel and allows the traveler to move freely over the intermediate anchors, minimizing wear and eliminating user assistance. The user's hands remain free to accomplish whatever task is required.
Features
- Controlled linear force with specialy designed anchor brackets and plates
- Two INRS energy absorbers
- Uses watertight, silicone rivets with neoprene seals
- Hands-free design with better ergonomics
- Wedge socket cable adjustment system
- Copper-aluminum anchors prevent fusing of the wire rope and allow the rope to slide through anchors effectively
- No need to dismantle the entire lifeline in the event of a fall, individual components can be replaced
- Up to 50 ft. (15 m) spans between brackets
Applications
- Building maintenance (rooftops without guardrails or parapets)
- Oil and gas installations
- Distribution facilities
- Industrial plants
- Rooftops or enclosures in concrete or metal panels
- Flat or sloped surfaces up to 15° inclination
Applicable standards:
- OSHA 1910, subpart D: Walking and working surfaces
- OSHA 1926, subpart M: Fall protection
- ANSI Z359.6-2016: Specifications and design requirements for active fall protection systems
- ANSI A10.32-2012: Personal fall protection used in construction and demolition operations
- CSA Z259.13-04 (2009): Flexible horizontal lifeline system
- CSA Z259.16-04 (2009): Design of active fall protection systems
For more information, please see
Data Sheet
