Tractel, 50418, NX1.5 0-30 Non-Marring Multiposition Self-Locking Plate Clamp

General Characteristics:

Manufactured without load bearing welds.
Hot epoxy coating.
Safety factor: 3 in accordance with ANSI B30.20.
Product delivered with instructions for use.
Every clamp is tested twice the working load limit.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

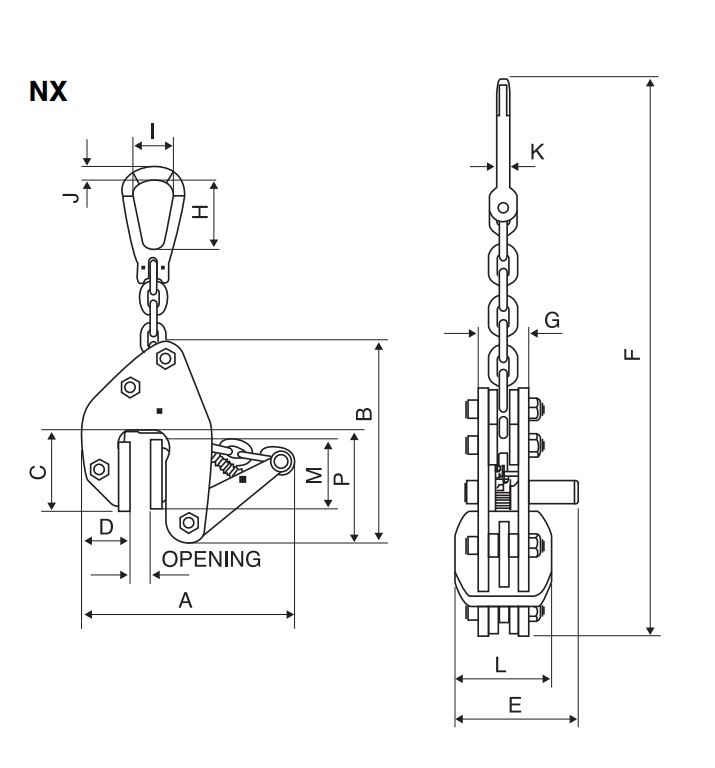

Technical Details

WLL lbs. (t)	3300 (1.5)WILL Lbs. (t)/(1500kg)
Opening	Min	0/0
	Max	1-1/8 in./30 mm
A	Min	8-2/3 in./220 mm
	Max	11-1/4 in./285 mm
B	10-3/16 in./256 mm
C	4-3/16 in./104 mm
D	2-11/16 in./68 mm
E	4-3/4 in./120 mm
F	Min	20 in./508 mm
	Max	24 in./610 mm
G	2-3/16 in./52 mm
H	3-7/16 in./81 mm
I	1-15/16 in./49 mm
J	1/2 in./13 mm
K	5/8 in./16 mm
L	3-15/16 in./100 mm
M	3-1/2 in./90 mm
P	5-23/32 in./145 mm
Chain Diameter	13/32 in./10 mm
Weight	24 lb./11 kg

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

TOPAL

Product Details

WLL lbs. (t)	3300 (1.5)WILL Lbs. (t)/(1500kg)
Opening	Min	0/0
	Max	1-1/8 in./30 mm
A	Min	8-2/3 in./220 mm
	Max	11-1/4 in./285 mm
B	10-3/16 in./256 mm
C	4-3/16 in./104 mm
D	2-11/16 in./68 mm
E	4-3/4 in./120 mm
F	Min	20 in./508 mm
	Max	24 in./610 mm
G	2-3/16 in./52 mm
H	3-7/16 in./81 mm
I	1-15/16 in./49 mm
J	1/2 in./13 mm
K	5/8 in./16 mm
L	3-15/16 in./100 mm
M	3-1/2 in./90 mm
P	5-23/32 in./145 mm
Chain Diameter	13/32 in./10 mm
Weight	24 lb./11 kg

Note: Please read description carefully. Do not base your order on the picture presented.
