Tractel 190048 Dynaplug HF44/2/LPT Measuring Tool

Tractel, 190048, Dynaplug HF44/3/LPT 50KN Structural Anchoring Strength Measuring Tool

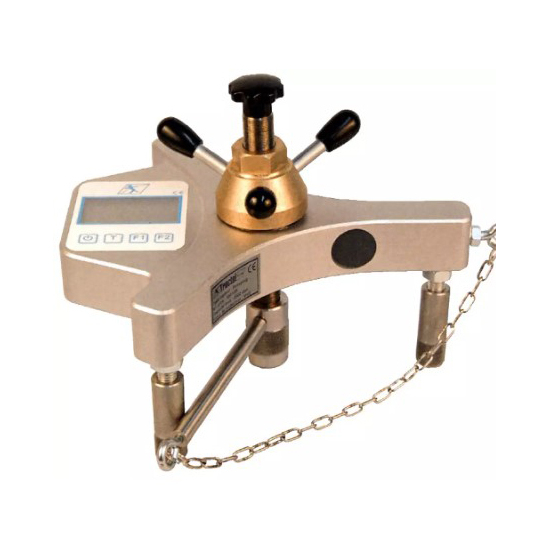

The dynaplug anchor tester is an electronic load cell designed to measure anchor strength in construction material. The tool measures traction forces up to 5000 daN. Its shape as a tripod has been especially designed to minimize its influence on the concrete around the fixing. The three legs made in stainless steel can be adapted from 70 mm up to 190 mm high.

Two programs have been included into the electronic load cell:

• Program n1 applies a force of 500 daN on the fixing during 20 seconds.
• Program n2 applies a force between of 1000 daN on the fixing during 3 minutes.

Features:

• Accuracy: <1% of nominal capacity
• Operating temperature from -4 to 140^oF
• Power supply: three 1.5 V "AA" batteries
• Delivered with a set of casings compatible with most current anchors and a cover adapted to the Tractel anchor points. Other casings on request
• Automatic sequence of 15 seconds test to 1,000 lbs.
• Automatic sequence of 3 minutes test to 2,000 lbs.
