Tractel, T532D Portable Manual Hoist without Wire Rope

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Rated load	7 054 lbs
Wire rope	0.6" (16.3 mm)
Effort to control lever (Forvard)	99 lbs (45 kg)
Effort to control lever (Reverse)	55 lbs (25 kg)
Rope travel per stroke (Forvard)	0.7" (18 mm)
Rope travel per stroke (Reverse)	1.4" (36 mm)
Weight53	53 lbs (24 kg)

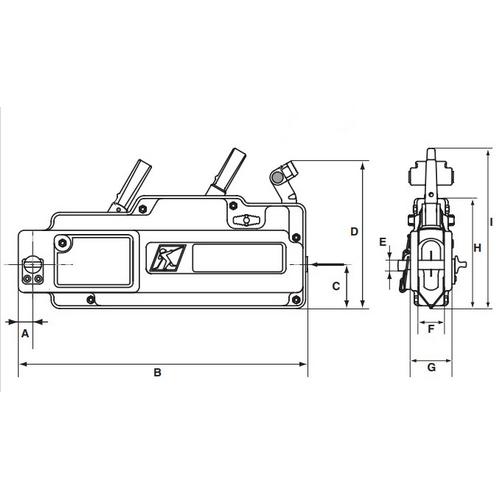

Dimensions A	1.6" (40.5 mm)
Dimensions B	24.8" (631 mm)
Dimensions C	4.2" (107 mm)
Dimensions D	11.1" (283 mm)
Dimensions E	1.1" (29 mm)
Dimensions F	2.7" (69 mm)
Dimensions G	3.8" (97 mm)
Dimensions H	9.4" (240 mm)
Dimensions I	14" (357 mm)
Dimensions J	25.5" (648 mm)
Dimensions K	45.2" (1147 mm)

Rated load	7 054 lbs
Wire rope	0.6" (16.3 mm)
Effort to control lever (Forvard)	99 lbs (45 kg)
Effort to control lever (Reverse)	55 lbs (25 kg)
Rope travel per stroke (Forvard)	0.7" (18 mm)
Rope travel per stroke (Reverse)	1.4" (36 mm)
Weight53	53 lbs (24 kg)
Dimensions A	1.6" (40.5 mm)
Dimensions B	24.8" (631 mm)
Dimensions C	4.2" (107 mm)
Dimensions D	11.1" (283 mm)
Dimensions E	1.1" (29 mm)
Dimensions F	2.7" (69 mm)
Dimensions G	3.8" (97 mm)
Dimensions H	9.4" (240 mm)
Dimensions I	14" (357 mm)
Dimensions J	25.5" (648 mm)
Dimensions K	45.2" (1147 mm)

Note: Please read description carefully. Do not base your order on the picture presented.
