Buy Tractel 017099124, T516D Portable Manual Hoist without Wire Rope

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Tractel, T516D Portable Manual Hoist without Wire Rope

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Rated load	3 527 lbs
Wire rope	1/2" (11.5 mm)
Effort to control lever (Forvard)	106 lbs (48 kg)
Effort to control lever (Reverse)	40 lbs (18 kg)
Rope travel per stroke (Forvard)	1.7" (42 mm)
Rope travel per stroke (Reverse)	2.2" (57 mm)
Weight	31 lbs (14 kg)

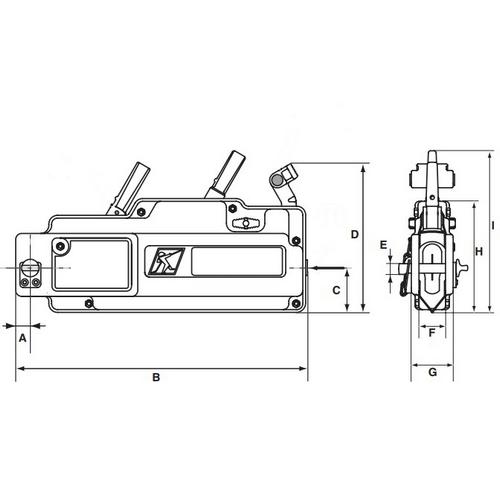

Dimensions A	1.2" (30 mm)
Dimensions B	21" (530 mm)
Dimensions C	3" (77 mm)
Dimensions D	9.9" (252 mm)
Dimensions E	0.8" (21.3 mm)
Dimensions F	2" (50 mm)
Dimensions G	3.3" (84 mm)
Dimensions H	7.6" (193 mm)
Dimensions I	12.4" (315 mm)
Dimensions J	25.5" (648 mm)
Dimensions K	45.2" (1147 mm)

Rated load	3 527 lbs
Wire rope	1/2" (11.5 mm)
Effort to control lever (Forvard)	106 lbs (48 kg)
Effort to control lever (Reverse)	40 lbs (18 kg)
Rope travel per stroke (Forvard)	1.7" (42 mm)
Rope travel per stroke (Reverse)	2.2" (57 mm)
Weight	31 lbs (14 kg)
Dimensions A	1.2" (30 mm)
Dimensions B	21" (530 mm)
Dimensions C	3" (77 mm)
Dimensions D	9.9" (252 mm)
Dimensions E	0.8" (21.3 mm)
Dimensions F	2" (50 mm)
Dimensions G	3.3" (84 mm)
Dimensions H	7.6" (193 mm)
Dimensions I	12.4" (315 mm)
Dimensions J	25.5" (648 mm)
Dimensions K	45.2" (1147 mm)

Note: Please read description carefully. Do not base your order on the picture presented.
