Torbal BTS110 Moisture Analyzer 110g x 0.01g

Moisture Analyzer

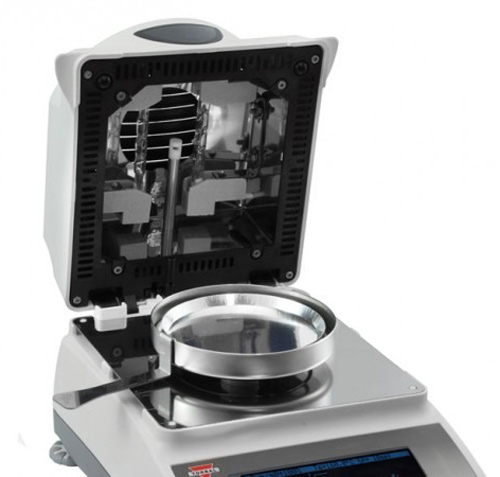

0.1% [110g x 0.01g] 160C Drying, General purpose Moisture Analyzer built with computer enhanced strain-gauge, equipped with a 200W halogen lamp drying oven, External Temperature adjustment, Graphical LCD display, USB, RS232, and PS2 interfaces.

Includes
	Disposable Pans Each moisture balance in furnished with disposable pans. The use ofinexpensive disposable pans eliminates the considerable work that would oftenbe required to remove dry residues from a standard pan. These pans are lightweight oil free aluminum pans designed to hold the sample materials and helpto provide a uniform temperature across the sample.
	Sodium Tartrate Dihydrate This chemical has some unique properties that make it a valuable tool fortesting the Moisture Analyzer to be sure it is operating properly. The chemicalstarts as Sodium Tartrate to which two molecules of water are bonded makingit a Dihydrate. The chemical is stable at temperatures up to 150 degrees C,and when heated at higher temperatures the water molecules are driven off.The chemical can be used as a primary standard for testing moisture analyzersor in titration. The theoretical moisture content of this chemical is 15.66% byweight.
	Tweezers A tweezers is furnished with each Moisture balance to facilitate the handling ofsmall parts or items which are part of the test sample, both before and afterheating. The use of the tweezers avoids adding oils or other contaminants thatmight occur if the samples were handled directly.
	Forceps A forceps is furnished with each Moisture Analyzer to allow the user to handlethose parts of the analyzer that become heated as part of the analysis process,such as the sample pan and/or its contents. They can also be useful inhandling some parts that are difficult with the tweezers.
	Micro-Spoon A special spoon is supplied with each moisture analyzer to facilitate loading asample pan with a precise amount of a powder or granular substance.
Features and Functions
	20 Memory locations for custom parameters ATS and BTS models are equipped with a memory bank that can store upto 20 individual sets of parameters for different samples. Each parametercan be quickly recalled from the memory by selecting a specified locationfrom the main memory. Saving parameter sets eliminates the need toreconfigure the drying parameters when switching between samples.
	4 drying profiles and analysis modes The analyzer offers four different drying profiles; Standard, Slow, Step, andFast. Selecting an appropriate profile increases the efficiency and accuracyof the moisture analysis.
	Small footprint and a compact design The ATS and BTS require only 82 squared inches of the tabletop area.With dimensions of 7.2in x 11.4in x 6in, the analyzer has one of thesmallest footprints available on the market, which allows to save preciousspace in your lab or work area.
	USB and RS232 Interface Ports ATS and BTS models are equipped with a USB and RS232 communicationports which allows the analyzer to connect to a PC, printer, or a peripheraldevice. Torbals free software packages such as STAT or Pro Mass can beused to collect, plot, and analyze data sent from the analyzer.
	PS2 External Keyboard Port Every analyzer is equipped with a PS2 keyboard port which allows the users to connect and external alphanumeric keyboard The keyboard canbe used to insert notes for printed reports.
	Drying Report Printing The analyzer produces a printer record of each performed analysis. Theprintout includes essential information regarding the analysis, such as thesamples initial mass, drying time, drying temperature, final result, as wellas notes entered by the user.
	Graphical LCD with Backlight The analyzer's graphical LCD makes the unit user friendly and easy to use.The LCD can be configured to display data and text in a negative (White onBlack) or positive (Black on White).
	Onscreen Graph Plotting The analyzer is equipped with a graph plotting feature which creates agraph of samples taken during the analysis. The feature is very usefulwhen performing an analysis for the first time and determining the optimumdrying parameters for a specific sample.
	Temperature Calibration The analyzers temperature sensor can be recalibrated or adjusted with anexternal high precision thermometer. This is a very useful feature inapplications which require high temperature control, and accuracy.
	Sealed Front Panel The analyzers front panel has seven intuitively organized keys which aresoft and easy to press. The keypad is sealed, therefore providing additionalprotection from dust or accidental spills.
	Automatic Self Test at Power up When turned on the analyzer performs a self-test that verifies properfunctionality of main components. Initial heating is also performed to dryexcess moisture particles that maybe present in the chamber while theanalyzer is not used.
