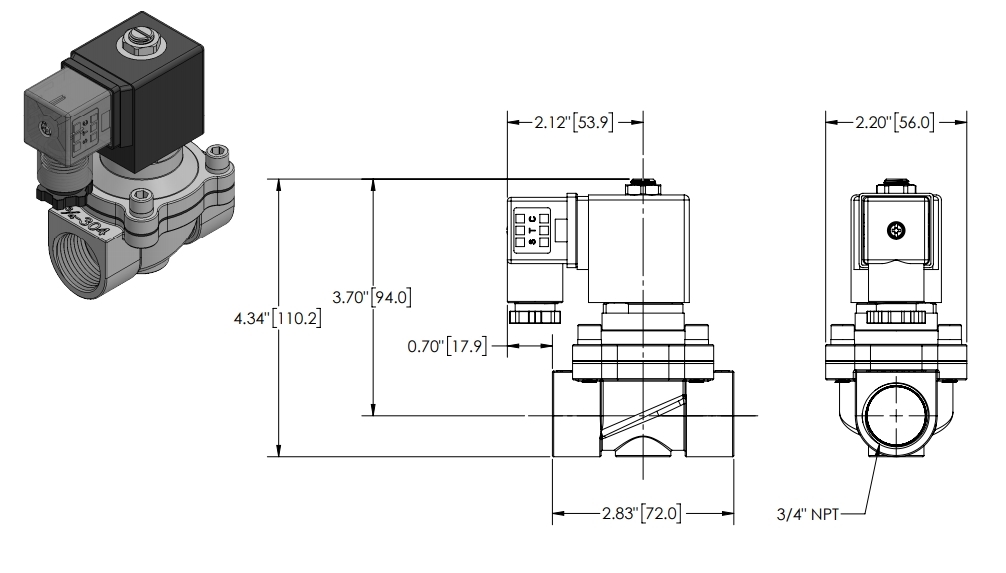

STC, 2S200-3/4-3-D-E, 3/4" NPT Direct Acting/Lift 2 Way 304 SS Solenoid Valve, 110VAC, EPDM Seal
This valve is a two-way, normally closed, direct-lift valve and does not require a minimum differential pressure to operate. The coil is de-energized (left diagram), the plunger and flexible diaphragm sit on the main valve orifice. The working medium flows through a tiny "bleed orifice" and pressurizes the cavity above the diaphragm - this system pressure, along with the spring force, seals the valve. When the valve is energized, the diaphragm is pulled away from the main orifice, allowing fluid to flow through the valve. Since the bleed orifice is dimensionally smaller than the main orifice, the system pressure cannot rebuilt on the top of the diaphragm as long as the main orifice remains open.
ALL standard valves are supplied with Continuous Duty Coils of the proper class of insulation for the service indicated on the valve. It is normal for the coil temperature may become hot after being energized for extended periods. Smoke or burning odor indicates excessive coil temperature and the power should be disconnected to the coil immediately.
Caution: Do not energize the solenoid coil when it is not installed onto the valve. It may cause it to overheat and create a fire hazard.
Service Life: The service life of the solenoid valve depends on the operating conditions such as pressure, temperature, type of medium, and the voltage.
