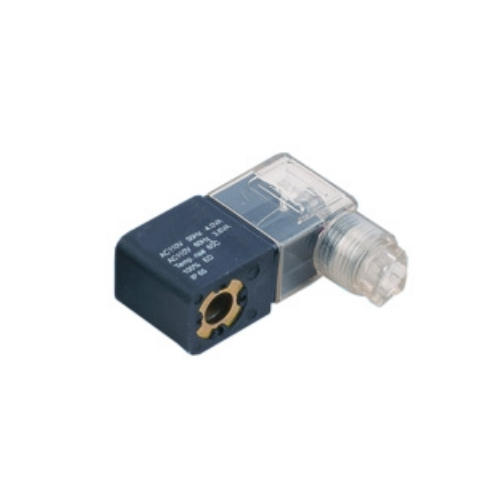

STC, 100C-4-D, 100C 220VAC x 2.5W DIN Coil for V100 Series Solenoid Valves

Features:

With LED indicator and conduit connector.
Remove the Philip screw from the plastic housing and unplug it from the DIN coil.
From the screw opening, use the screw to push the terminal block out of the plastic housing.
For DC DIN Coil, Connect 1 to Positive, 2 to Negative.
For AC DIN Coil, connect 1 to HOT wire, 2 to Neutral wire, and if required connect ground to ground wire.

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Declaration

Declaration Some custom / out-of-stock items are drop shipped directly from manufacturer's location in China. In such cases additional shipping cost for air delivery from China may be added to your order total. Please "Add to Quote" prior to purchasing for a quote.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Reviews

Coil Insulation & Protection Class	F Class, IP65
Voltage	220VAC
Coil Duty Cycle	100% ED
Electrical Connection	DIN (with LED indicator, conduit terminal) DIN 43650C
Power Consumption	2.5 Watt (Holding), 160% (Inrush)
Certification	(CE Certification)

Product Details

Coil Insulation & Protection Class	F Class, IP65
Voltage	220VAC
Coil Duty Cycle	100% ED
Electrical Connection	DIN (with LED indicator, conduit terminal) DIN 43650C
Power Consumption	2.5 Watt (Holding), 160% (Inrush)
Certification	(CE Certification)
