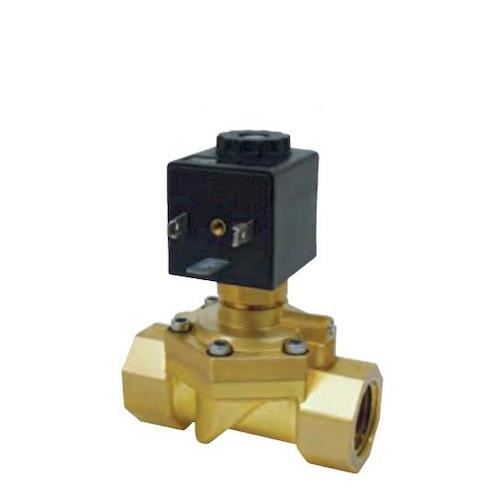

The Spartan Scientific Series 3516 2-Way, 2-Position Normally Closed or Normally Opened solenoid diaphragm process valve offers the highest flow for the smallest overall size in its class as compared to competitive units. The valve is designed from the ground up using modern design technologies and materials. The potable water brass body is media compatible, rugged and virtually indestructible. The body is available in 1/4”, 3/8” and 1/2” NPT. The low wattage solenoid features a DIN Style “A” EN175301-803 (Formerly DIN 43650) electrical interface and is nylon encapsulated. FKM, EPDM and NBR are standard elastomers and the operators are made of stainless steel / brass or stainless steel / brass with copper shading rings for AC versions. Typical applications include control of inert gases, water and compatible fluids.
For more information, please see
Data Sheet
Meantime you may review Spartan Scientific bestsellers or review the list of all available Spartan Scientific products in the table below.
You may request a quote for a specific product or just contact us at any time
For more products see Product List

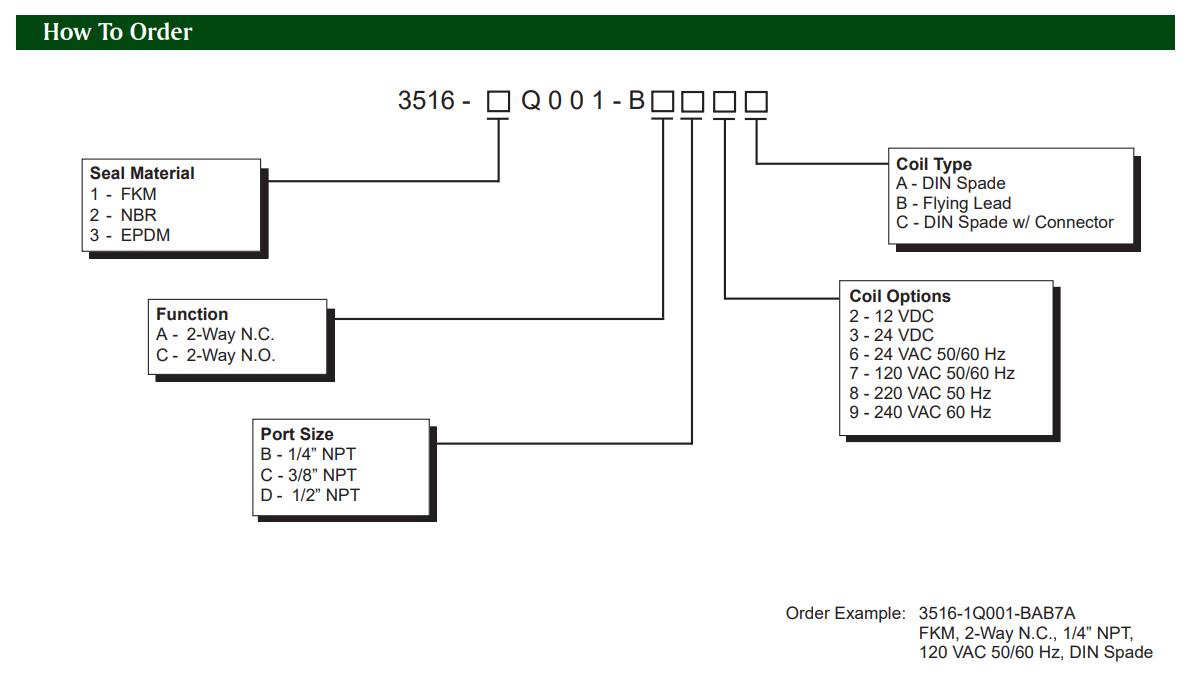

| Part Number |
| 3516-1Q001-BAB2A |
| 3516-1Q001-BAB2B |
| 3516-1Q001-BAB2C |
| 3516-1Q001-BAB3A |
| 3516-1Q001-BAB3B |
| 3516-1Q001-BAB3C |
| 3516-1Q001-BAB6A |
| 3516-1Q001-BAB6B |
| 3516-1Q001-BAB6C |
| 3516-1Q001-BAB7A |
| 3516-1Q001-BAB7B |
| 3516-1Q001-BAB7C |
| 3516-1Q001-BAB8A |
| 3516-1Q001-BAB8B |
| 3516-1Q001-BAB8C |
| 3516-1Q001-BAB9A |
| 3516-1Q001-BAB9B |
| 3516-1Q001-BAB9C |
| 3516-1Q001-BAC2A |
| 3516-1Q001-BAC2B |
| 3516-1Q001-BAC2C |
| 3516-1Q001-BAC3A |
| 3516-1Q001-BAC3B |
| 3516-1Q001-BAC3C |
| 3516-1Q001-BAC6A |
| 3516-1Q001-BAC6B |
| 3516-1Q001-BAC6C |
| 3516-1Q001-BAC7A |
| 3516-1Q001-BAC7B |
| 3516-1Q001-BAC7C |
| 3516-1Q001-BAC8A |
| 3516-1Q001-BAC8B |
| 3516-1Q001-BAC8C |
| 3516-1Q001-BAC9A |
| 3516-1Q001-BAC9B |
| 3516-1Q001-BAC9C |
| 3516-1Q001-BAD2A |
| 3516-1Q001-BAD2B |
| 3516-1Q001-BAD2C |
| 3516-1Q001-BAD3A |
| 3516-1Q001-BAD3B |
| 3516-1Q001-BAD3C |
| 3516-1Q001-BAD6A |
| 3516-1Q001-BAD6B |
| 3516-1Q001-BAD6C |
| 3516-1Q001-BAD7A |
| 3516-1Q001-BAD7B |
| 3516-1Q001-BAD7C |
| 3516-1Q001-BAD8A |
| 3516-1Q001-BAD8B |
| 3516-1Q001-BAD8C |
| 3516-1Q001-BAD9A |
| 3516-1Q001-BAD9B |
| 3516-1Q001-BAD9C |
| 3516-1Q001-BCB2A |
| 3516-1Q001-BCB2B |
| 3516-1Q001-BCB2C |
| 3516-1Q001-BCB3A |
| 3516-1Q001-BCB3B |
| 3516-1Q001-BCB3C |
| 3516-1Q001-BCB6A |
| 3516-1Q001-BCB6B |
| 3516-1Q001-BCB6C |
| 3516-1Q001-BCB7A |
| 3516-1Q001-BCB7B |
| 3516-1Q001-BCB7C |
| 3516-1Q001-BCB8A |
| 3516-1Q001-BCB8B |
| 3516-1Q001-BCB8C |
| 3516-1Q001-BCB9A |
| 3516-1Q001-BCB9B |
| 3516-1Q001-BCB9C |
| 3516-1Q001-BCC2A |
| 3516-1Q001-BCC2B |
| 3516-1Q001-BCC2C |
| 3516-1Q001-BCC3A |
| 3516-1Q001-BCC3B |
| 3516-1Q001-BCC3C |
| 3516-1Q001-BCC6A |
| 3516-1Q001-BCC6B |
| 3516-1Q001-BCC6C |
| 3516-1Q001-BCC7A |
| 3516-1Q001-BCC7B |
| 3516-1Q001-BCC7C |
| 3516-1Q001-BCC8A |
| 3516-1Q001-BCC8B |
| 3516-1Q001-BCC8C |
| 3516-1Q001-BCC9A |
| 3516-1Q001-BCC9B |
| 3516-1Q001-BCC9C |
| 3516-1Q001-BCD2A |
| 3516-1Q001-BCD2B |
| 3516-1Q001-BCD2C |
| 3516-1Q001-BCD3A |
| 3516-1Q001-BCD3B |
| 3516-1Q001-BCD3C |
| 3516-1Q001-BCD6A |
| 3516-1Q001-BCD6B |
| 3516-1Q001-BCD6C |
| 3516-1Q001-BCD7A |
| 3516-1Q001-BCD7B |
| 3516-1Q001-BCD7C |
| 3516-1Q001-BCD8A |
| 3516-1Q001-BCD8B |
| 3516-1Q001-BCD8C |
| 3516-1Q001-BCD9A |
| 3516-1Q001-BCD9B |
| 3516-1Q001-BCD9C |
| 3516-2Q001-BAB2A |
| 3516-2Q001-BAB2B |
| 3516-2Q001-BAB2C |
| 3516-2Q001-BAB3A |
| 3516-2Q001-BAB3B |
| 3516-2Q001-BAB3C |
| 3516-2Q001-BAB6A |
| 3516-2Q001-BAB6B |
| 3516-2Q001-BAB6C |
| 3516-2Q001-BAB7A |
| 3516-2Q001-BAB7B |
| 3516-2Q001-BAB7C |
| 3516-2Q001-BAB8A |
| 3516-2Q001-BAB8B |
| 3516-2Q001-BAB8C |
| 3516-2Q001-BAB9A |
| 3516-2Q001-BAB9B |
| 3516-2Q001-BAB9C |
| 3516-2Q001-BAC2A |
| 3516-2Q001-BAC2B |
| 3516-2Q001-BAC2C |
| 3516-2Q001-BAC3A |
| 3516-2Q001-BAC3B |
| 3516-2Q001-BAC3C |
| 3516-2Q001-BAC6A |
| 3516-2Q001-BAC6B |
| 3516-2Q001-BAC6C |
| 3516-2Q001-BAC7A |
| 3516-2Q001-BAC7B |
| 3516-2Q001-BAC7C |
| 3516-2Q001-BAC8A |
| 3516-2Q001-BAC8B |
| 3516-2Q001-BAC8C |
| 3516-2Q001-BAC9A |
| 3516-2Q001-BAC9B |
| 3516-2Q001-BAC9C |
| 3516-2Q001-BAD2A |
| 3516-2Q001-BAD2B |
| 3516-2Q001-BAD2C |
| 3516-2Q001-BAD3A |
| 3516-2Q001-BAD3B |
| 3516-2Q001-BAD3C |
| 3516-2Q001-BAD6A |
| 3516-2Q001-BAD6B |
| 3516-2Q001-BAD6C |
| 3516-2Q001-BAD7A |
| 3516-2Q001-BAD7B |
| 3516-2Q001-BAD7C |
| 3516-2Q001-BAD8A |
| 3516-2Q001-BAD8B |
| 3516-2Q001-BAD8C |
| 3516-2Q001-BAD9A |
| 3516-2Q001-BAD9B |
| 3516-2Q001-BAD9C |
| 3516-2Q001-BCB2A |
| 3516-2Q001-BCB2B |
| 3516-2Q001-BCB2C |
| 3516-2Q001-BCB3A |
| 3516-2Q001-BCB3B |
| 3516-2Q001-BCB3C |
| 3516-2Q001-BCB6A |
| 3516-2Q001-BCB6B |
| 3516-2Q001-BCB6C |
| 3516-2Q001-BCB7A |
| 3516-2Q001-BCB7B |
| 3516-2Q001-BCB7C |
| 3516-2Q001-BCB8A |
| 3516-2Q001-BCB8B |
| 3516-2Q001-BCB8C |
| 3516-2Q001-BCB9A |
| 3516-2Q001-BCB9B |
| 3516-2Q001-BCB9C |
| 3516-2Q001-BCC2A |
| 3516-2Q001-BCC2B |
| 3516-2Q001-BCC2C |
| 3516-2Q001-BCC3A |
| 3516-2Q001-BCC3B |
| 3516-2Q001-BCC3C |
| 3516-2Q001-BCC6A |
| 3516-2Q001-BCC6B |
| 3516-2Q001-BCC6C |
| 3516-2Q001-BCC7A |
| 3516-2Q001-BCC7B |
| 3516-2Q001-BCC7C |
| 3516-2Q001-BCC8A |
| 3516-2Q001-BCC8B |
| 3516-2Q001-BCC8C |
| 3516-2Q001-BCC9A |
| 3516-2Q001-BCC9B |
| 3516-2Q001-BCC9C |
| 3516-2Q001-BCD2A |
| 3516-2Q001-BCD2B |
