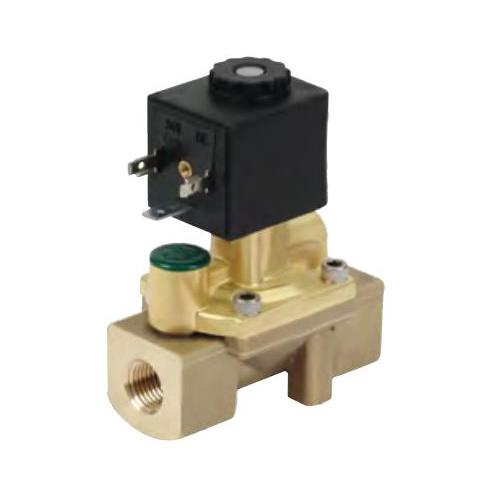

The Spartan Scientific Series 3505 is a 2-Way, 2-Position, internally piloted solenoid valve for the control of air, emulsion, inert gases and water. The valve features an all brass body and a full flow 1/2” orifice while maintaining a 1.5 minimum pressure differential. The design allows for a tight seal on the orifice at 0 psi. Available in 1/4”, 3/8” and 1/2” NPT, the 3505 can handle pressures to 230 psi. The encapsulated coil construction ensures that the valve functions well under long periods of activation (100% duty), as well as providing a high degree of environmental protection (NEMA 4). The inner valve functions as a direct assist using a flat diaphragm and orifice plate. Pressure differentials shift the valve to full open or full closed. A push, non-locking manual override is standard.
For more information, please see

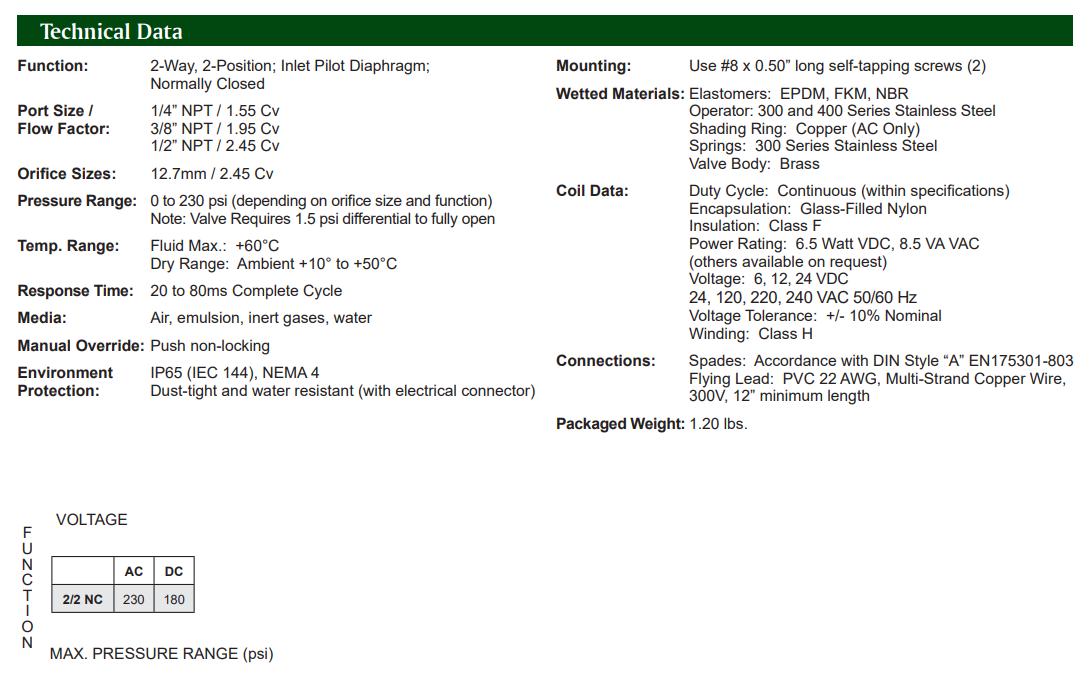

Data Sheet
Meantime you may review Spartan Scientific bestsellers or review the list of all available Spartan Scientific products in the table below.
You may request a quote for a specific product or just contact us at any time
For more products see Product List

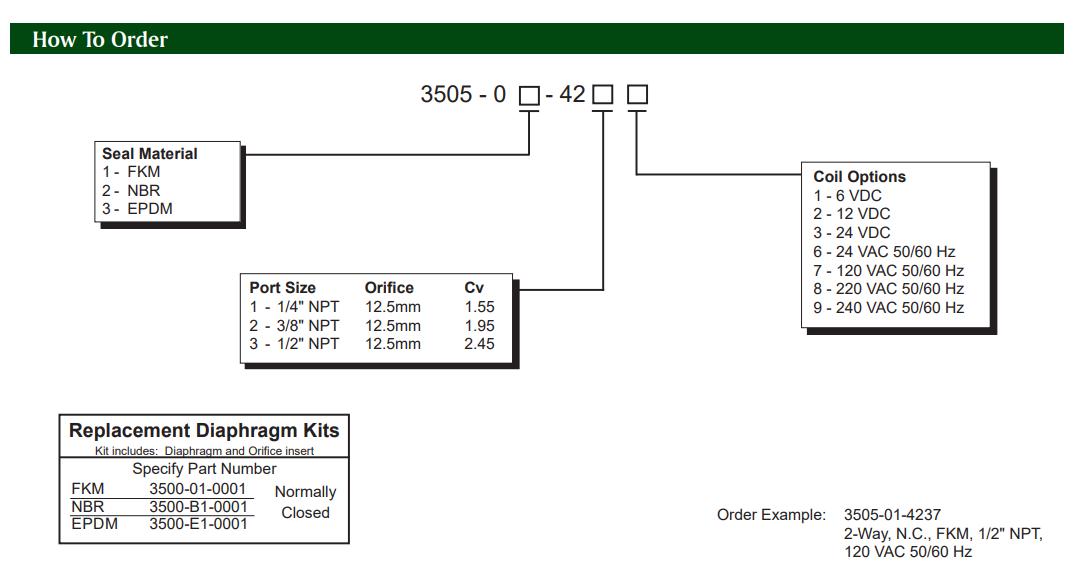

| Part Number |
| 3505-01-4211 |
| 3505-01-4212 |
| 3505-01-4213 |
| 3505-01-4216 |
| 3505-01-4217 |
| 3505-01-4218 |
| 3505-01-4219 |
| 3505-01-4221 |
| 3505-01-4222 |
| 3505-01-4223 |
| 3505-01-4226 |
| 3505-01-4227 |
| 3505-01-4228 |
| 3505-01-4229 |
| 3505-01-4231 |
| 3505-01-4232 |
| 3505-01-4233 |
| 3505-01-4236 |
| 3505-01-4237 |
| 3505-01-4238 |
| 3505-01-4239 |
| 3505-02-4211 |
| 3505-02-4212 |
| 3505-02-4213 |
| 3505-02-4216 |
| 3505-02-4217 |
| 3505-02-4218 |
| 3505-02-4219 |
| 3505-02-4221 |
| 3505-02-4222 |
| 3505-02-4223 |
| 3505-02-4226 |
| 3505-02-4227 |
| 3505-02-4228 |
| 3505-02-4229 |
| 3505-02-4231 |
| 3505-02-4232 |
| 3505-02-4233 |
| 3505-02-4236 |
| 3505-02-4237 |
| 3505-02-4238 |
| 3505-02-4239 |
| 3505-03-4211 |
| 3505-03-4212 |
| 3505-03-4213 |
| 3505-03-4216 |
| 3505-03-4217 |
| 3505-03-4218 |
| 3505-03-4219 |
| 3505-03-4221 |
| 3505-03-4222 |
| 3505-03-4223 |
| 3505-03-4226 |
| 3505-03-4227 |
| 3505-03-4228 |
| 3505-03-4229 |
| 3505-03-4231 |
| 3505-03-4232 |
| 3505-03-4233 |
| 3505-03-4236 |
| 3505-03-4237 |
| 3505-03-4238 |
| 3505-03-4239 |
