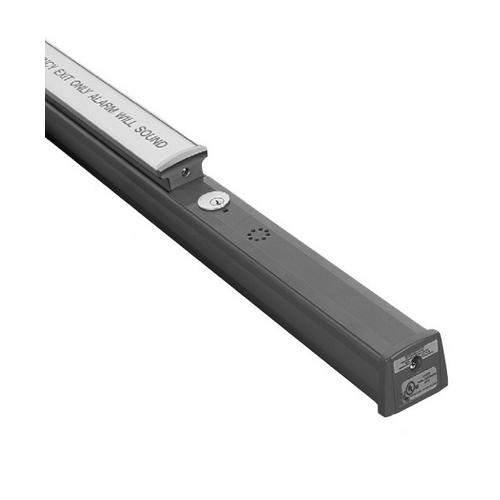

Rutherford Controls L1320F x 40 L1300 37" to 48" Electrified Fire Exit Device, Alarm Module x40

Rutherford Controls (RCI)

1300 High Security Electrified Rim Exit DevicesRCI's 1200 and 1300 Series exit devices resolve the conflict between life safety and security. Both 1200 Mechanical and 1300 Electric Series exit devices feature a patented latch that rotates to engage and grip the specially designed strike. This unique interlocking grip action secures the door to the jamb without conventional roller strikes or retracting latches.

In addition an interlocking mechanism located in the chassis offers a double interlocking system which makes these exit devices virtually impossible to tamper with, pry or force open. The attractive lever trim can be used on the exterior side of the door for access.

Features:

• Model 1300 includes a 12/24VDC dual voltage continuous-duty solenoid which provides a remote unlock feature for controlled entry.
• Field Selectable 12/24 VDC (24VDC at 0.4A / 12VDC at 0.8A)
• Options: Fire labeled exit device, no dogging
• Finishes: Dark Duranodic (BHMA 710)
• Weather resistant for outddor use
• Current of less than 800mA at 12VDC and 400mA at 24VDC is required to unlock the device or to dog it unlocked. (fire rated devices must be powered through contact of a fire-alram system relay)
• All models re-latch
• Pre-assembled for easy installation
• Camlock and cylinder dogging available (for non-fire labeled doors)
• Choice of 3 alarm modules (standard)
• Standard lengths for 36" (3 feet) and 48" (4 feet) doors
• Can be field cut for undersized doors
• Non-handed for installing on all types of doors, including narrow stile aluminum
• High security, exceeding a 1" deadbolt
• Made in the USA
• Warranty: 3 Year Limited Warranty

Applications:

• Use 120, 1200 or 1300 Series with any 3 or 4-foot-wide doors
• Use with all types of doors, including narrow-stile aluminum
• Any exterior door exposed to possible tampering
