This product is discontinued, no longer available. Replacement part numbers:

ST-ELECTRICKIT, Electrician's Combo Kit

REED Electrician's Combo Kit has everything needed to get an electricians job done whether that be residential, commercial or industrial. All fits into the carrying case so no need to forget something at another job site.

Includes:

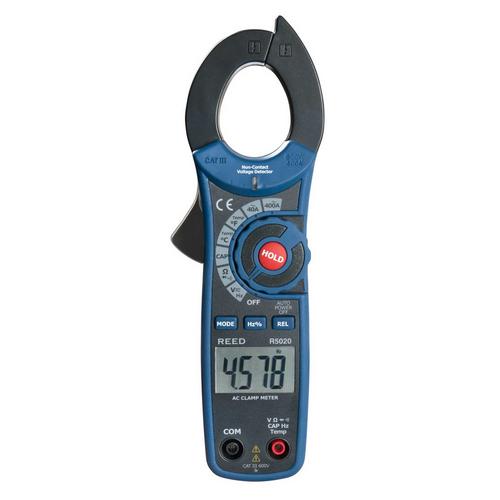

	REED R5020 AC Clamp Meter Compact AC clamp meter with built-in non-contact voltage detector and contact thermometer
	REED R5009 Autoranging Pocket Multimeter Autoranging digital multimeter with built-in non-contact voltage detector and flashlight.

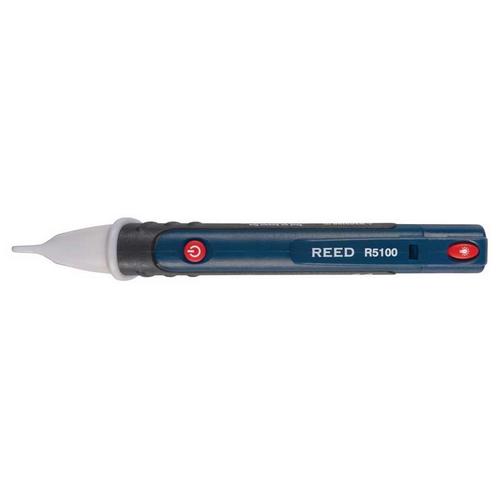

	REED R5100 Non-Contact AC Voltage Detector with Flashlight Durable double molded plastic housing.
	REED AD-1 Thermocouple Adapter This adapter converts any Type-K thermocouple temperature probe with a mini-connector to dual shrouded banana plug inputs.

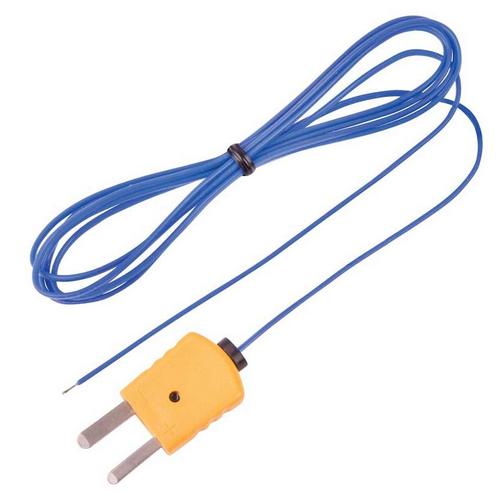

	REED TP-01 Beaded Thermocouple Wire Probe This Type-K beaded thermocouple wire probe is recommended for basic general purpose temperature applications. The TP-01 is color coded according to ANSI thermocouple identification standards.
	REED R1000 Safety Test Lead Set, Double Insulated Right angle and straight end flexible leads with shrouded banana plugs.
	REED R9950 Soft Carrying Case Accommodates up to 3 medium to large sized instruments and accessories.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Resources

Reviews

R5020 Specifications
AC Current
Range	40, 400A
Accuracy	AC: ±(2.5% rdg. + 8 dgt.)
Resolution	0.01, 0.1A
AC/DC Voltage
Range	AC: 4, 40, 400, 600VDC: 400mV, 4, 40, 400, 600V
Accuracy	AC: ±(1.8% rdg. + 8 dgt.)DC: ±(1.5% rdg. + 2 dgt.)
Resolution	AC: 0.001, 0.01, 0.1, 1VDC: 0.1mV, 0.001, 0.01, 0.1, 1V
Resistance
Range	400Ω, 4, 40, 400kΩ, 4, 40MΩ
Accuracy	±(1.5% rdg. + 2 dgt.)0.1Ω, 0.001, 0.01, 0.1kΩ, 0.001, 0.01MΩ
Capacitance
Range	40, 400nF, 4, 40, 100µF
Accuracy	±(3% rdg. + 5 dgt.)
Resolution	0.01, 0.1nF, 0.01, 0.1μF
Frequency
Range	10MHz
Accuracy	±(1.2% rdg. + 2 dgt.)
Resolution	0.01Hz
Temperature
Range	-4 to 1400°F (-20 to 760°C)
Accuracy	±(3.0% rdg. + 9°F)±(3.0% rdg. + 5°C)
Resolution	1°F, 1°C
General Specifications
Range Selection	Autoranging / Manual
Display	4,000 count LCD display
Display Hold	Yes
Relative Mode	Yes
Diode Test	Yes
Continuity Check	Audible signal if resistance <150Ω
Duty Cycle	Yes
Non-Contact Voltage Detector	Yes
Autoshut off	Yes (after 15 mins)
Power Supply	2 x AAA
Low Battery Indicator	Yes
Jaw Opening	1.2" (30mm), up to 350 MCM
Overvoltage Category	CAT. III 600V
Product Certifications	CE
Operating Temperature	32 to 122°F (0 to 50°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Dimensions	7.9 x 2.6 x 1.5" (200 x 66 x 37 mm)
Weight	7.2oz (205g)
R5009 Specifications
AC/DC Voltage
Range	AC: 2, 20, 200, 600VDC: 200mV, 2, 20, 200, 600V
Accuracy	AC: 2,20V ±(1.0% rdg + 3 dgt.) 200, 600V ±(2.3% rdg + 10 dgt.)DC: mV±(0.5% rdg + 3 dgt.)V±(1.2% rdg + 3 dgt.)
Resolution	AC: 1, 10, 100mV, 1VDC: 0.1, 1, 10, 100mV, 1V
AC/DC Current
Range	200, 2000µA, 20, 200mA
Accuracy	AC: ±(2.5% rdg + 10d)DC: ±(2.0% rdg + 8d)
Resolution	0.1, 1, 10, 100µA
Resistance
Range	200Ω, 2, 20, 200kΩ, 2, 20MΩ
Accuracy	200.0Ω ±(0.8% rdg + 5d), 2.000, 20.00, 200.0kΩ ±(1.2% rdg + 5d)2.000MΩ ±(5.0% rdg + 5d)20.00MΩ ±(10.0% rdg + 5d)
Resolution	0.1, 1, 10, 100Ω, 1, 10kΩ
General Specifications
Range Selection	Autoranging
Display	2,000 count LCD display
Display Hold	Yes
Relative Mode	Yes
Diode Test	Yes
Continuity Check	Audible signal if resistance ≤150Ω
Non-Contact Voltage Detector	Yes
Built-in Flashlight	Yes
Auto Power Off	Yes (after 15 minutes)
Power Supply	2 x AAA
Low Battery Indicator	Yes
Replaceable Test Leads	No
Overvoltage Category	CAT III 1000V, CAT IV 600V
Product Certifications	CE
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	14 to 122°F (-10 to 50°C)
Dimensions	4.1 x 2.2 x 1.3" (104 x 55 x 32.5mm)
Weight	5.2oz (145g)
R5100 Specifications
Voltage Range	50 to 1000V AC
Frequency Range	50 to 60Hz
Built-in Flashlight	Yes
Auto Power Off	Yes (after 3 minutes)
Power Supply	2 AAA Batteries
Overvoltage Category	CAT. III 1000V, CAT. IV 600V
Product Certifications	CE, UL
Operating Temperature	32 to 104°F (0 to 40°C)
Operating Humidity	0 to 85%
Storage Temperature	14 to 122°F (-10 to 50°C)
Dimensions	6.3 x 1 x 1" (159 x 25 x 25mm)
Weight	1.5oz (42g)
