REED Instruments SD-6100 220.5 lb Force Gauge/Data Logger

REED Instruments, SD-6100, 220.5 lb Force Gauge/Data Logger

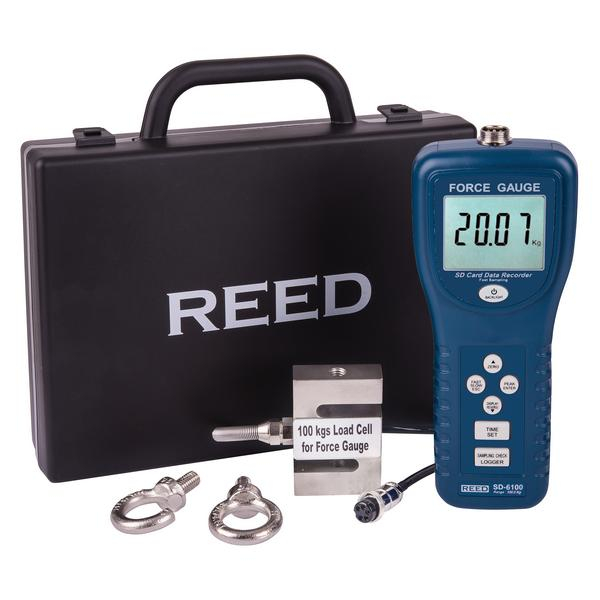

SD-6100 Includes Only:

• 100kg Force Gauge Datalogger
• Load Cell Sensor with 2 Hooks and Cable
• Hard Carrying Case
• Batteries

Features

• Measures tension and compression (Compression Test Fixture required for push test)
• Records in Peak hold or Normal mode
• Fast/Slow response selection
• Full capacity tare (zero) capability
• Force is measured in kg, lb or Newtons
• Easy-to-read backlit display
• Reversible display ensures legible readings regardless of direction

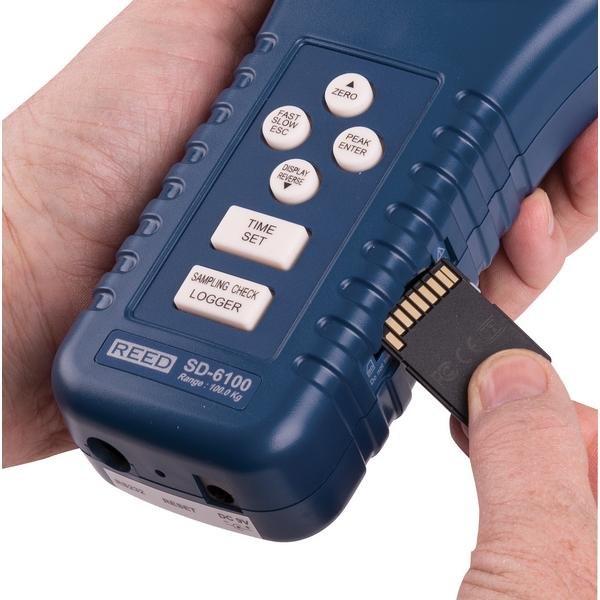

• Real-time datalogger with integral SD memory card
• User selectable sampling rate from 1 to 3600 seconds
• Optional PC software features live tracking via USB connection
• Low battery indicator and auto shut off

This gauge has the ability to measure push and pull forces up to 220lbs (100kg) and features a reversible display ensuring measurements are easily read, regardless of testing direction. The SD-6100 features a real time datalogger with memory card slot. Using a SD card (max 16Gb), a user can select a desired sampling rate and quickly generate an Excel file on a SD card without the use of software. Optional accessories include an AC adapter for continuous long-term monitoring and PC software to track real-time measurements.

Applications:

• Electronics
• Automotive
• Plastics
• Lab Testing
