Phase II 900-410 Digital Rockwell Hardness Tester

  • Brand Phase II
  • Part # 900-410
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
  • Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.
Share:

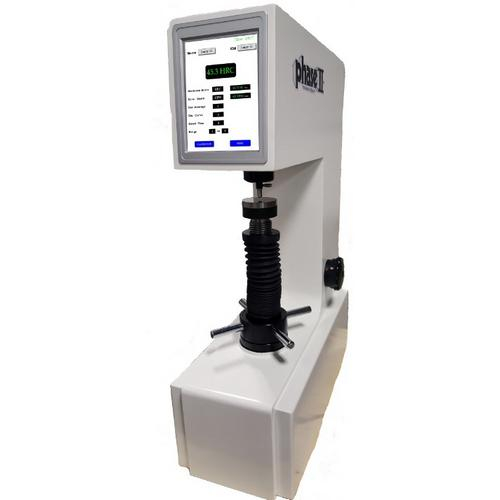

The 900-410 Digital Rockwell Hardness Tester can be used directly to measure the most popular regular Rockwell hardness scales and it can quickly convert that hardness value into HB, HV, HLD, HK and many other scales. Loaded with many useful features such as ultra precise results, wide measuring range, scale and test force selectable, automatic main test force loading/unloading, high resolution digital display and USB data storage. The 900-410 is suitable for testing hardness of carbon steel, alloy steel, cast iron, non-ferrous metals and engineering plastics.

900-410 Includes Only:

  • A. Large Anvil
  • B. Small Diameter Anvil
  • C. V-shaped Anvil
  • D. Four Test Blocks
  • 1. One each, HRB 75-95
  • 2. One each, HRC 25-35
  • 3. One each, HRC 40-50
  • 4. One each, HRC 55-65
  • E. 120 deg. Diamond Indentor
  • F. 1/16" Carbide Ball indentor
  • G. Storage Box
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Preload98.1N (10kgf)
Total test force588.4N(60kgf), 980.7N(100kgf), 1471N(150kgf)
ScalesHRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRE, HRL, HRM, HRP, HRR, HRS, HRV
Load dwell duration2~50s
Resolution0.1HR
DisplayHigh definition backlight LCD
OperationMenu selectable push buttons
Auxiliary functionsUpper/lower limits setting & alarm, Scale conversions: HV & HB
Data outputUSB memory stick
Testing CapacityVertical: 8.00" Throat Depth: 7.87"
DimensionsHeight: 22.04" Width: 8.07" Depth: 31.49" (560mmx205mmx800mm)
Power supplysingle phase, AC, 110V, 50~60Hz, 4A
Gross weight175lbs (80kg)
Product Details
Preload98.1N (10kgf)
Total test force588.4N(60kgf), 980.7N(100kgf), 1471N(150kgf)
ScalesHRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRE, HRL, HRM, HRP, HRR, HRS, HRV
Load dwell duration2~50s
Resolution0.1HR
DisplayHigh definition backlight LCD
OperationMenu selectable push buttons
Auxiliary functionsUpper/lower limits setting & alarm, Scale conversions: HV & HB
Data outputUSB memory stick
Testing CapacityVertical: 8.00" Throat Depth: 7.87"
DimensionsHeight: 22.04" Width: 8.07" Depth: 31.49" (560mmx205mmx800mm)
Power supplysingle phase, AC, 110V, 50~60Hz, 4A
Gross weight175lbs (80kg)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
