Phase II 900-366 Tall Frame Digital Rockwell Hardness Tester

  • Brand Phase II
  • Part # 900-366
  • Condition
    Brand New
Availability
Contact Us
Check Availability
Quantity
  • Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.
Share:

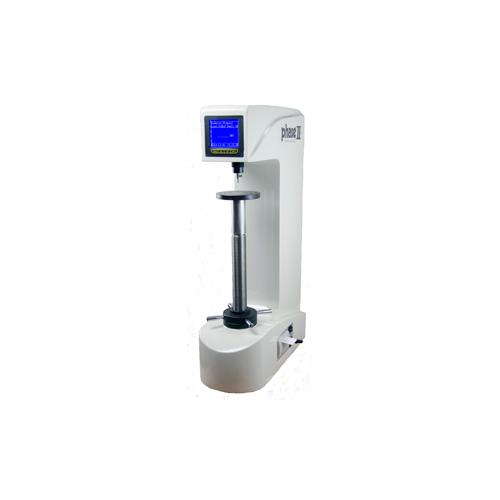

Tall Frame Digital Rockwell Hardness Tester

Features

  • Easily obtain Average, Min/Max, S, R
  • Menu selectable system
  • Upper/Lower Limit Settings
  • Memory of 500 test results
  • Curved Surface Auto Correction

This digital Rockwell hardness tester with fully automated load/unload procedures affords highly sensitive and accurate readings. Micro computer controlled with USB output to built-in mini printer or PC. The 900-366 digital Rockwell hardness tester offers programmable scale conversions, dwell times, statistical capabilities and test counter. Capable of testing in all of the regular Rockwell® scales.

The 900-366 digital Rockwell hardness tester comes complete with everything needed to test in the following Rockwell Scales: A, B, C, D, F, G.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Optional Accessories
Reviews
Minor Load10 Kgf
Major Load60 Kgf, 100 Kgf, 150 KGF
Test Force ApplicationDead Weight
Test Force ControlMotorized
Results DisplayHi Def LCD Digital Readout
Resolution0.1HR
Memory/Output500 Tests/USB
Vertical Capacity16.5"
Throat Depth6.50"
Height28.34"
Width7.87"
Depth21.60"
Preload98.1N (10kgf)
ScalesHRB，HRC，HRD，HRE，HRF，HRG，HRH，HRK，HRL，HRM，HRP，HRR，HRS，HRV
Load cycle3~8s
Load dwell duration2~50s
Power supplysingle phase, AC, 110V, 50~60Hz, 4A Prior to ship, please advise power setting needed.
DisplayHigh definition backlight LCD
OperationMenu selectable, Membrane keypad
Auxiliary functionsUpper/lower limits setting& alarming, / Data statistics, Avg., Max., Min., S, R / Scale conversion, HV, HB, σb, etc. / urved surface Auto Correction
Data outputPrint out, or output to PC through USB port
MemoryMax 500 items of test results stored automatically
Product Details
Minor Load10 Kgf
Major Load60 Kgf, 100 Kgf, 150 KGF
Test Force ApplicationDead Weight
Test Force ControlMotorized
Results DisplayHi Def LCD Digital Readout
Resolution0.1HR
Memory/Output500 Tests/USB
Vertical Capacity16.5"
Throat Depth6.50"
Height28.34"
Width7.87"
Depth21.60"
Preload98.1N (10kgf)
ScalesHRB，HRC，HRD，HRE，HRF，HRG，HRH，HRK，HRL，HRM，HRP，HRR，HRS，HRV
Load cycle3~8s
Load dwell duration2~50s
Power supplysingle phase, AC, 110V, 50~60Hz, 4A Prior to ship, please advise power setting needed.
DisplayHigh definition backlight LCD
OperationMenu selectable, Membrane keypad
Auxiliary functionsUpper/lower limits setting& alarming, / Data statistics, Avg., Max., Min., S, R / Scale conversion, HV, HB, σb, etc. / urved surface Auto Correction
Data outputPrint out, or output to PC through USB port
MemoryMax 500 items of test results stored automatically
