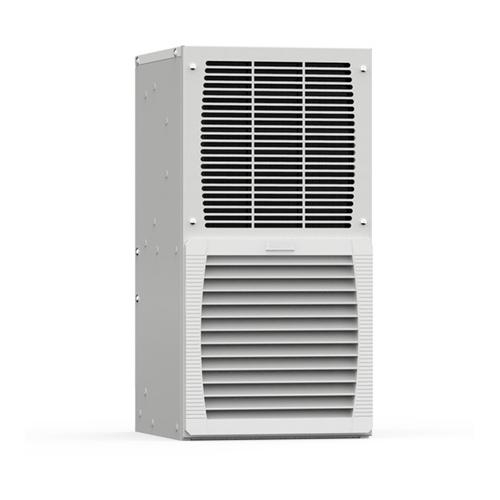

Pfannenberg, DTS 3061, NEMA Type 3R/4, Side Mount Cooling Unit 2000-3000 Btu
Features:
- High Airflow Backward Curve Impeller Fan
Provides high airflow in a long lasting, single bearing design. Outperforms typical two-bearing blowers with nearly twice the lifespan.
Designed to isolate the external ambient air from the internally conditioned air eliminating the risk of contaminants entering the cabinet.
- Thermal Overload Protection
Compressor and fan motors are outfitted with integral temperature switches to shut down the unit in the event of excessive temperature. This increases the operating life of the compressor by preventing thermal overload trips.
- Pressure Overload Protection
High pressure cutout switch ensures safety by shutting off the compressor in the event of excessive pressure appearing in the refrigeration circuit.
Utilizes HFC-free R134a refrigerant versus a blended refrigerant for easier service and minimized negative impact to the environment.
- Hermetically Sealed Compressor
The absence of any refrigerant fill valves eliminates leak paths. Recharging is never needed. 100% cooling capacity efficiency is ensured.
- Highest in Class Capacity
The compact, 10 inch width is ideal for small enclosures with a relatively small heat load. The integral power cord helps simplify installation. An integral ingress filter is provided on type 12/3R/4 versions.
Outdoor and wash-down units have a special coating on pipes and coils on the ambient side of the unit to provide maximum protection from saltwater, sour gas, and other corrosive substances.
- Optimized Condenser Design
The wide fin spacing is less susceptible to clogging from dirt buildup which can cause the unit to work harder and hamper efficiency.
includes an integrated Pfannenberg PFA Exhaust Filter for simple replacement of the filter.
Regulates the flow of refrigerant based on thermal demand for efficient performance over the entire operating temperature range.
The DTS 3000 Series Cooling Units were designed utilizing high temperature compressors and larger condensers. Both the indoor NEMA Type 12 units and outdoor units perform very well in environments that require cooling where the maximum ambient temperature is 131 F.
Powder coated steel or stainless steel cover designed for manufacturing environments. Easily painted to match enclosure or machine.
