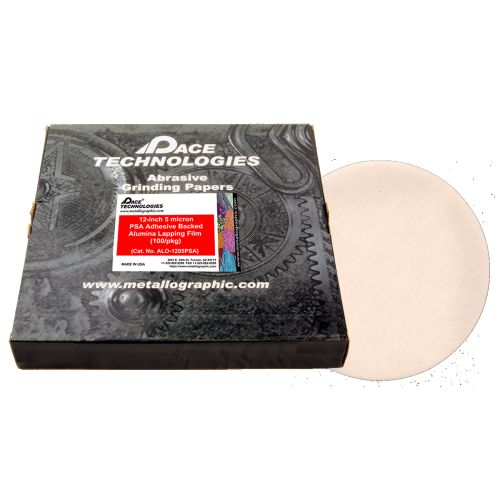

Pace Technologies, ALO-1205PSA-3, 12-inch 5 Micron Alumina Lapping Film with PSA Adhesive
The applications for lapping films range from polishing semiconductor dies, fiber optics, optical components, ceramic capacitors, computer hard drive read-write heads, ceramic seals, etc. The main characteristic of lapping films is that they produce very flat surfaces, especially across materials with a wide range in hardness.
Lapping films consist of a polyester backing (typically 3 mils) on which the abrasive is rigidly fixed with an epoxy binder.
Alumina lapping films consist of an aluminum oxide, which is a naturally occurring material (Bauxite). It exits in either the softer gamma (mohs 8) or harder alpha (mohs 9, 2000 HV) phase. Alumina abrasives are used primarily as a final polishing abrasive because of its high hardness and durability
| Unit of Measure | Pack of 100 Pieces |
