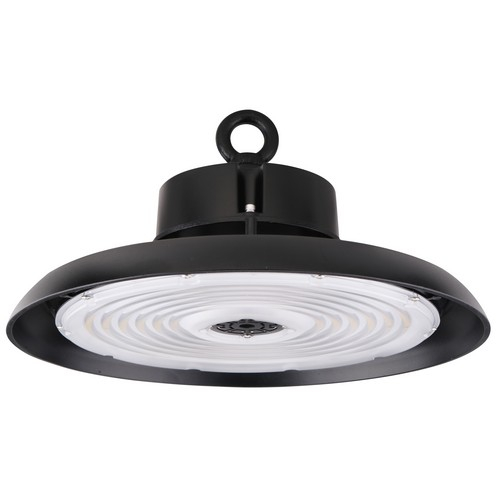

Morris, 74103B, LED UFO High Bay Light, 277-480V, 5000K, 160-200-240W, Black Housing Color

Features:

1-10V Dimming
SMD 2835 LEDs
Beam Angle: 90°
Wattage Tunable: 160W, 200W or 240W
Input Voltage: 120/208/240/277VAC
Color Temperature: 5000K
CRI: >80
Power Factor 0.9
Operating Temperature: -40°F to 122°F
50,000+ Hour LED Life Expectancy
IP65 (NEMA 4X) Dust & Water Tight
Corrosion Resistant Die Cast Aluminum Housing
Integral Cooling Fin Releases Heat Efficiently to maintian the life of the LEDs/Driver
Stainless Steel Hardware
60" Wire Whip for Easy Install
Superior Architectural Black Powder Coat Finish
Eye-Hook Mount - 1/2" Thread - Included
cULus listed for Wet Locations
DLC Listed

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Electrical

Input Voltage: 277-480V
Current: 2A at 120V
Frequency: 50/60Hz
Power Factor: ≥.0.9
THD: >20%

Product Parameters

160/200/240 Watts
Lumens: 33,810
Efficacy: 141 Lumens Per Watt
50,000+ L70 Life Span
CCT: 5000K (Cool White)

Chromacity Measurements

Beam Angle: 120°
CRI: >82
R9:0
DUV: -0.0009
Chromaticity (x,y): x=.3280 y=.3389
Chromaticity (u,v): u=0.2047 v=0.4758

Component Specifications

LED: Seoul 3030
Driver: 120V 50/60Hz
Driver Output Volts: 150V/VDC
Driver Output Amps: 1 A
2000V Surge Protection

Dimming

0-10V

Operating Temperature

Minimum Starting -30°F - 131°F

Construction

Housing: Die Cast Aluminum Powder Coated
IP Rating: IP65 Damp Location Rated
Lens Material: PC
Mounting: Ceiling Mount
Listings: cULus

Product Details

Electrical

Input Voltage: 277-480V
Current: 2A at 120V
Frequency: 50/60Hz
Power Factor: ≥.0.9
THD: >20%

Product Parameters

160/200/240 Watts
Lumens: 33,810
Efficacy: 141 Lumens Per Watt
50,000+ L70 Life Span
CCT: 5000K (Cool White)

Chromacity Measurements

Beam Angle: 120°
CRI: >82
R9:0
DUV: -0.0009
Chromaticity (x,y): x=.3280 y=.3389
Chromaticity (u,v): u=0.2047 v=0.4758

Component Specifications

LED: Seoul 3030
Driver: 120V 50/60Hz
Driver Output Volts: 150V/VDC
Driver Output Amps: 1 A
2000V Surge Protection

Dimming

0-10V

Operating Temperature

Minimum Starting -30°F - 131°F

Construction

Housing: Die Cast Aluminum Powder Coated
IP Rating: IP65 Damp Location Rated
Lens Material: PC
Mounting: Ceiling Mount
Listings: cULus

Note: Please read description carefully. Do not base your order on the picture presented.
