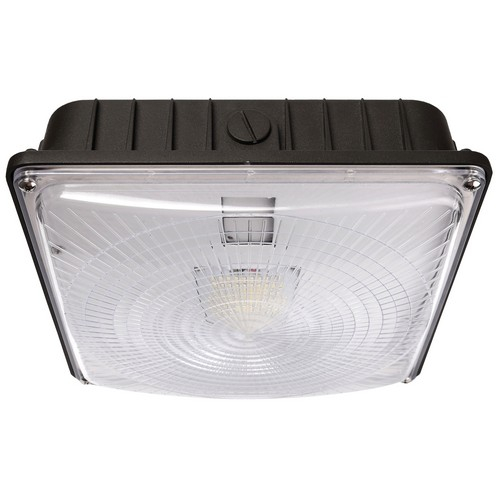

Buy Morris 71609B, LED UltraThin Canopy Light Gen 2, 70W, 5000K, Bronze - Mega Depot

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features:

Integral cooling fin releases the heat efficiently to maintain the life of the LED & driver
Corrosion resistant Die Cast Aluminum housing
Prismatic Polycarbonate Lens
Superior Architectural Powder Coat Finish in Bronze
Stainless Steel Hardware
(3) 1/2" KO's & (1) 3/4"KO's
45 Watts
50,000+ Hour LED Life Expectancy
Photocell Not Included
IP65 Wet Location Rated
ETL listed

Use LED UltraThin Canopy Light for security and safety lighting on walkways and exterior canopies.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Electrical

Input Voltage: 120 thru 277
Current:
- .568A at120V
- .284A at277V
Frequency: 60Hz
Power Factor: ≥.9

Product Parameters

70 Watts
Efficacy: 114 lumens per watt
50,000+ LED Life Span
CCT: 5000k (Cool White)

Chromacity Measurements

Beam Angle: 140°
CRI: ≥ 70
R9: -21
DUV: 0.0059
Chromaticity (x,y):
- x=.3454
- y= .3639
Chromaticity (u,v):
- u=.2069
- v= .3270

Component Specifications

LED: SSC3030
Driver: 120-277V 50-60HZ
Driver Output Volts: 120-277
Driver Output Amps: 205mA
Surge Protection: 10000V

Dimming

0-10

Operating Temperature

Minimum Starting -31° - 122° F

Construction

Housing: Aluminum Housing, Powder Coat Bronze Finish
IP Rating: IP65 Wet Location Rated
Lens Material: Prismatic Polycarbonate Lens
Mounting: Ceiling Mount (Drywall / Sheetrock)
Listings: ETL DLC#: PLH1SCRFCK0U
Weight: 8 lb

Notes

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details

Electrical

Input Voltage: 120 thru 277
Current:
- .568A at120V
- .284A at277V
Frequency: 60Hz
Power Factor: ≥.9

Product Parameters

70 Watts
Efficacy: 114 lumens per watt
50,000+ LED Life Span
CCT: 5000k (Cool White)

Chromacity Measurements

Beam Angle: 140°
CRI: ≥ 70
R9: -21
DUV: 0.0059
Chromaticity (x,y):
- x=.3454
- y= .3639
Chromaticity (u,v):
- u=.2069
- v= .3270

Component Specifications

LED: SSC3030
Driver: 120-277V 50-60HZ
Driver Output Volts: 120-277
Driver Output Amps: 205mA
Surge Protection: 10000V

Dimming

0-10

Operating Temperature

Minimum Starting -31° - 122° F

Construction

Housing: Aluminum Housing, Powder Coat Bronze Finish
IP Rating: IP65 Wet Location Rated
Lens Material: Prismatic Polycarbonate Lens
Mounting: Ceiling Mount (Drywall / Sheetrock)
Listings: ETL DLC#: PLH1SCRFCK0U
Weight: 8 lb

Note: Please read description carefully. Do not base your order on the picture presented.
