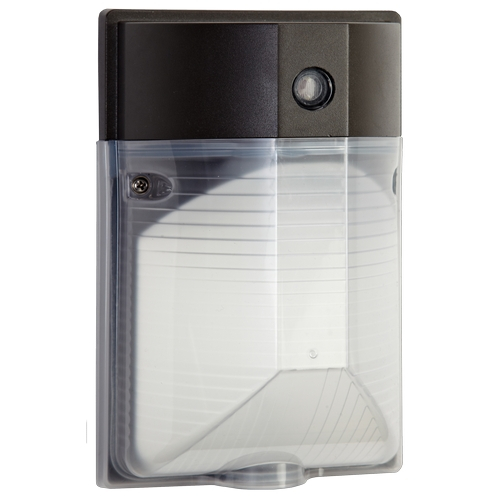

Buy Morris 71525B, LED Designer Mini Wallpack Gen2, 26W, Bronze, 4000K - Mega Depot

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features:

Use in decorative lighting applications: Entryways, Walkways, Door Step Lighting and pathways
SSC 3030 LEDs
Photocell Included
Die Cast Aluminum Housing and Mounting Plate
Powder Coat Finish in Bronze
Polycarbonate Frosted Lens
Stainless Steel Hardware
120/208/240/277VAC
50,000+ Hour LED Life Expectancy
1/2" KO at Base of Fixture
IP65(NEMA 4X) Dust & Water Tight
cETLus listed for Wet Locations

Use LED Designer Mini Wallpack Gen2 to brighten outdoor areas efficiently.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Electrical

Input Voltage: 120 thru 277
Current:
- .229A at 120V
- .09A at 277V
Frequency: 60Hz
Power Factor: ≥.96
THD:
- 15.64% at120V
- 24.72% at277V

Product Parameters

26 Watts
Efficacy: 115 lumens per watt
50,000+ LED Life Span
CCT: 4000K (Neutral White)

Chromacity Measurements

Beam Angle: 120°
BUG Rating: N/A
CRI: ≥72
R9: -27
DUV: 0.0043
Chromaticity (x,y):
- x=.3794
- y= .3853
Chromaticity (u,v):
- u=.2211
- v= .3368

Component Specifications

LED: SSC3030
Driver: 120-277V 50-60HZ
Driver Output Volts: 30-36VDC
Driver Output Amps: 620mA
Surge Protection: 2500V

Operating Temperature

Minimum Starting -31° - 122° F

Construction

Housing: Diecast Aluminum Bronze Finish
IP Rating: IP65 Waterproof Rating
Lens Material: Frosted Polycarbonate
Mounting: Wall Mount
Listings: ETL DLC#: PLPH2C2RADLB
Weight: 2.1lb

Notes

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details

Electrical

Input Voltage: 120 thru 277
Current:
- .229A at 120V
- .09A at 277V
Frequency: 60Hz
Power Factor: ≥.96
THD:
- 15.64% at120V
- 24.72% at277V

Product Parameters

26 Watts
Efficacy: 115 lumens per watt
50,000+ LED Life Span
CCT: 4000K (Neutral White)

Chromacity Measurements

Beam Angle: 120°
BUG Rating: N/A
CRI: ≥72
R9: -27
DUV: 0.0043
Chromaticity (x,y):
- x=.3794
- y= .3853
Chromaticity (u,v):
- u=.2211
- v= .3368

Component Specifications

LED: SSC3030
Driver: 120-277V 50-60HZ
Driver Output Volts: 30-36VDC
Driver Output Amps: 620mA
Surge Protection: 2500V

Operating Temperature

Minimum Starting -31° - 122° F

Construction

Housing: Diecast Aluminum Bronze Finish
IP Rating: IP65 Waterproof Rating
Lens Material: Frosted Polycarbonate
Mounting: Wall Mount
Listings: ETL DLC#: PLPH2C2RADLB
Weight: 2.1lb
