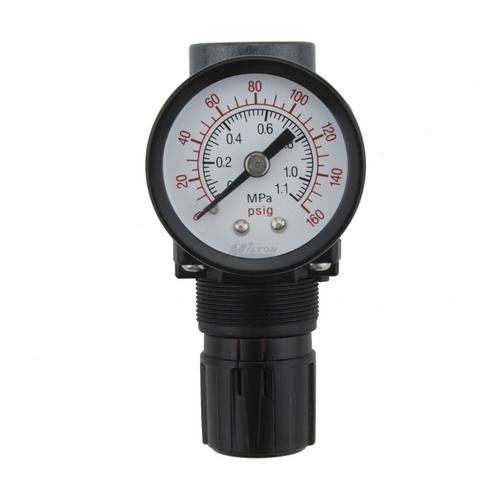

Milton S-1145R 1/4" NPT Mini FRL Air Regulator

1/4" NPT Mini FRL Air Regulator

The Milton Simply Better Air™ system provides the best solution to manage compressed air. All Milton FRL components can be installed with modular accessories or hard piped. Includes metal mounting bracket with two screws to attach to unit. Mounting bracket does not include mounting hardware to mount bracket to wall. FRL component has a temperature range between 25°F and 140°F or -5°C and 60°C. Includes a dial gage dial gauge diameter measuring at 1-5/8" and reads in PSI with a range of 0 to 160 PSI and 0 to 1.1 MPa. Dial gauge features metal construction and 1/8" center back mount. This regulator, along with all Milton regulators, includes blank out plate with two screws to cover up gauge port opening when not in use and a lockout knob that allows set PSI pressure.

Features

• 1/4 inch national pipe threads on both inlet and outlet
• Regulator maintains consistent pressure and prevents overdriving tools
• Regulator is one of three components for a better air management system
