Buy Marson M46885, MSR Series Small Flange Steel Rivet Nut, M5x0.8

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Buy in Bulk 3 Applicable Promotion(s)

Buy 50 pcs, get 7% off
Save 7% each on Marson M46885 MSR Series Small Flange Steel Rivet Nut, M5x0.8 when you purchase 50 or more
Buy 25 pcs, get 5% off
Save 5% each on Marson M46885 MSR Series Small Flange Steel Rivet Nut, M5x0.8 when you purchase 25 or more
Buy 10 pcs, get 3% off
Save 3% each on Marson M46885 MSR Series Small Flange Steel Rivet Nut, M5x0.8 when you purchase 10 or more

Quantity

Options and Related Products

Thread Size and Grip Range:: Thread Size and Grip Range: M5x0.8, 3.3 - 5.7 mm
Material:: Material: Steel

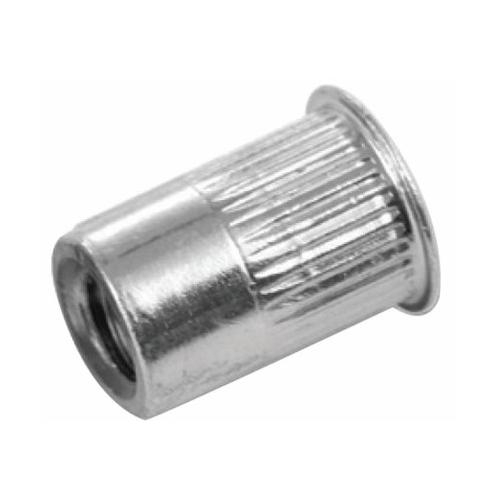

Marson, M46885, MSR Series Small Flange Low Profile Steel Ribbed Rivet Nut, M5x0.8, 3.3 - 5.7 mm

Features:

Small flange low profile ribbed rivet nut virtually flush install with increased turn-out resistance vs conventional low profile ply-nut

Unit of Measure	Pack of 500 pcs

Unit of Measure

Pack of 500 pcs

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Thread Size	M5x0.8 ISO-5H
Type	Rivetnut Insert
Body Material	Steel
Body End	Open End
Style	"K" Style Round Body Splined
RoHS Compliant	Yes
Body Finish	Zinc Yellow Trivalent Chromate
Material Detail	Steel 1008/1010
Finish Detail	Zinc Yellow Trivalent Chromate Per ASTM-B-633 Type II, Class 2
Head Type	Low Profile
Minimum Grip	0.130 Inch (3.30mm)
Maximum Grip	0.224 Inch (5.70mm)
Head Height	0.019 Inch (0.48mm)
Maximum Hole Size	0.305 Inch (7.75mm)
Head Diameter	0.340 Inch (8.64mm)
Item	Rivetnut Insert
Body Length	0.585 Inch (14.86mm)
Decimal Equivalent Diameter	0.296 Inch
Grip Range	0.130 - 0.224 Inch (3.30 - 5.70mm)
Minimum Hole Size	0.299 Inch (7.60mm)
Set Body Length	0.315 Inch (8.00mm)
Drill Size	19/64 Inch

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Thread Size	M5x0.8 ISO-5H
Type	Rivetnut Insert
Body Material	Steel
Body End	Open End
Style	"K" Style Round Body Splined
RoHS Compliant	Yes
Body Finish	Zinc Yellow Trivalent Chromate
Material Detail	Steel 1008/1010
Finish Detail	Zinc Yellow Trivalent Chromate Per ASTM-B-633 Type II, Class 2
Head Type	Low Profile
Minimum Grip	0.130 Inch (3.30mm)
Maximum Grip	0.224 Inch (5.70mm)
Head Height	0.019 Inch (0.48mm)
Maximum Hole Size	0.305 Inch (7.75mm)
Head Diameter	0.340 Inch (8.64mm)
Item	Rivetnut Insert
Body Length	0.585 Inch (14.86mm)
Decimal Equivalent Diameter	0.296 Inch
Grip Range	0.130 - 0.224 Inch (3.30 - 5.70mm)
Minimum Hole Size	0.299 Inch (7.60mm)
Set Body Length	0.315 Inch (8.00mm)
Drill Size	19/64 Inch

Note: Please read description carefully. Do not base your order on the picture presented.
