Mark-10 MTT03C-50 Series TT03C Digital Torque Gauge, 570 Ncm

Mark-10, MTT03C-50, Series TT03C Digital Torque Gauge, 50 lbFin / 800 ozFin / 570 Ncm

Series TT03C digital cap torque gauges are quick and economical solutions for basic handheld cap torque testing. These portable instruments eliminate the need to secure closures in a fixture or more elaborate testing system. A dedicated remote torque sensor with Jacobs chuck is supplied with a universal grip for caps from 0.65 - 1.55 in (16.5 - 39.4 mm) diameter.

The gauges include MESUR™ Lite data acquisition software, for tabulation of continuous or individual data points. One-click export to Excel allows for further data manipulation.

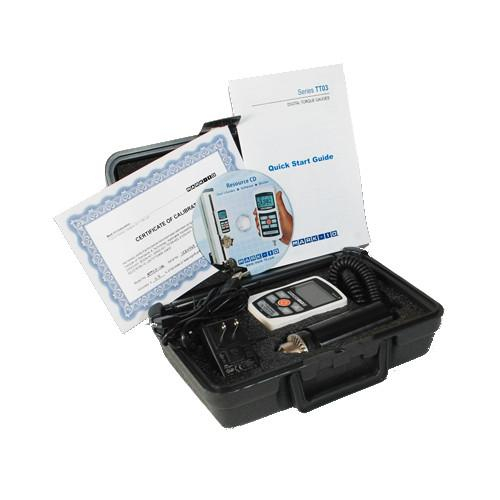

Includes:

• Series TT03 torque gauge
• G1053 cap grip
• Carrying case
• Universal voltage AC adapter
• Battery
• Certificate of calibration
• USB cable
• Resource CD (USB driver, user's guides, MESUR Lite software, MESUR gauge DEMO software, User's Guide)

Features:

• Ergonomic torque sensor with Jacobs chuck
• Peak torque values saved and displayed
• High-speed 2,000 Hz sampling rate
• USB data output of continuous or individual data points
• Programmable set points with pass/fail indicators
• Live load bar graphs with set point markers
• Peak memory for clockwise and counter clockwise readings
• Set points always displayed
• Configurable audio alarms and key tones
• MESUR™ Lite data collection software included
• Battery or AC operation
• Safe overload: 150% of capacity
• CE mark
