Mark-10 MR50-12 Series R50 Plug & Test Universal Torque Sensor, 12 lbFin

Mark-10, MR50-12, Series R50 Plug & Test Universal Torque Sensor, 12 lbFin

Series R50 smart sensors measure bi-directional torque for a wide variety of applications across virtually all industries. The sensors can be used as hand held devices, or mounted to a test stand. Compatible with Mark-10 indicators (sold separately) through unique Plug & TestTM technology.

Includes:

• NIST-traceable certificate of calibration with data

Features:

• Member of the Plug & Test™ family of interchangeable sensors and indicators
• Rugged aluminum housing
• Accuracy: ± 0.35% of full scale + indicator
• Weight: From 1.4 lb (0.6 kg)

	Unique Plug & TestTM technology allows for interchangeable sensors to be used with a Mark-10 indicator. All calibration and configuration data is saved in the smart connector.

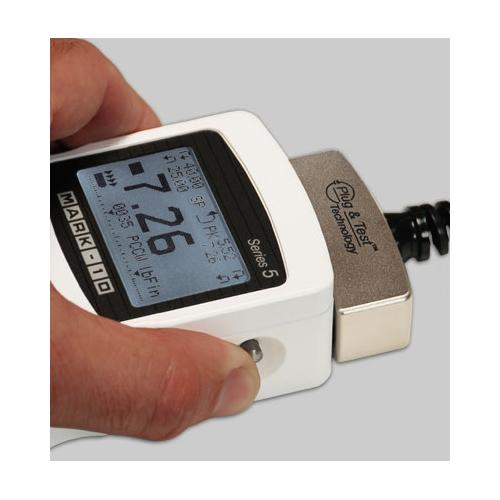

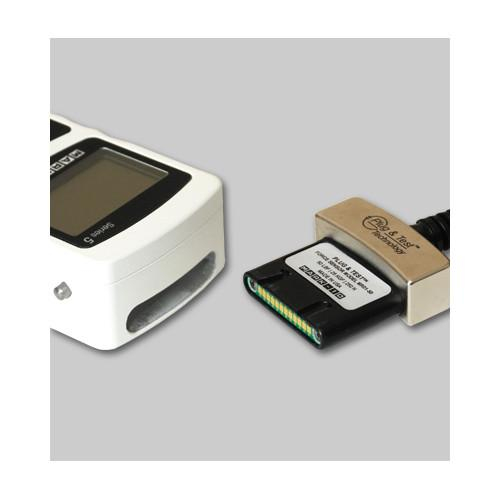

	The Plug & TestTM connector locks into the receptacle in the indicator when fully inserted. Dual buttons on the indicator housing release the connector for easy removal. Gold plated spring contacts ensure long lasting and reliable connection.

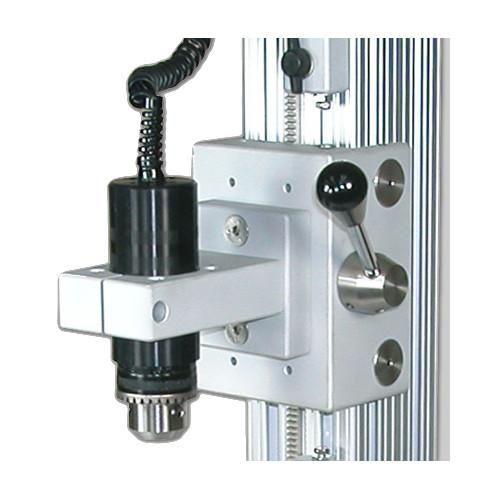

	A Series R50 torque sensor is shown mounted to a model TSTM motorized torque test stand. The sensor fits into the stand without the need for additional adapters
