ES10, Lever-Operated Test Stand, 100 lbF / 500 N

The ES10 manual test stand is compact and economical solutions for compression and tensile testing of small samples. Use this stand with force gauges and grips to create complete and economical testing systems.

Includes:

Allen wrench set
Lever
4 x Thumb screw for force gauge
Resource CD

Features:

Small size
Compatible with all Mark-10 force gauges, accessories and grips
Mounting holes for bench mounting

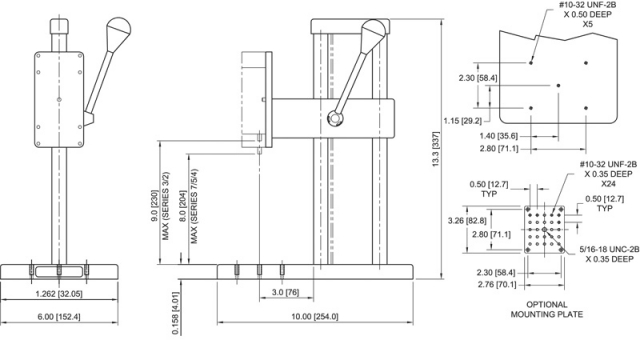

Large base plate with 5 #10-32 UNF holes for fixture mounting

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Maximum Force	100 lbF [500 N]
Maximum Travel	9" [229 mm]
Loading Method	Lever (can be placed in 3 positions for ease of operation)
Travel Rate	1.050" [26.7 mm] / lever rev.
Weight	10 lb [4.5 kg]

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Maximum Force	100 lbF [500 N]
Maximum Travel	9" [229 mm]
Loading Method	Lever (can be placed in 3 positions for ease of operation)
Travel Rate	1.050" [26.7 mm] / lever rev.
Weight	10 lb [4.5 kg]
