EKE-200-1, Series E Advanced Ergonomics Kit, 200 lbF / 1,000 N

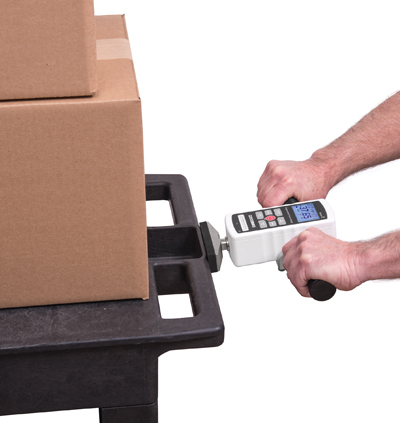

Series E push / pull force gauges make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies. Series E presents the ergonomist and other professionals with a simple and economical testing solution. 100 lbF, 200 lbF and 500 lbF (500, 2,500, and 5,000 N) capacity force gauges are available, along with a wide range of attachments for various applications. Select a pre-configured kit, including a gauge, accessories, and carrying case, or select each item individually to suit your needs. Attachments click and lock into place via innovative Click-Lock technology, a rugged anti-rotation locking mechanism. The attachments may be clicked into 90deg or 180deg orientations. No fastening is required, as with conventional force gauges, thereby reducing the risk of damage to the instrument.
Includes:
- Carrying case
- Universal voltage AC adapter
- Battery
- USB cable
- Resource CD (USB driver, MESUR Lite software, MESUR gauge and MESUR gauge Plus 90-day trial, and users guide)
- NIST-traceable certificate of calibration with data
Features:
- Measure real time and peak push and pull forces
- Three measuring ranges: 100, 200, and 500 lbF (500, 1000, and 2,500 N)

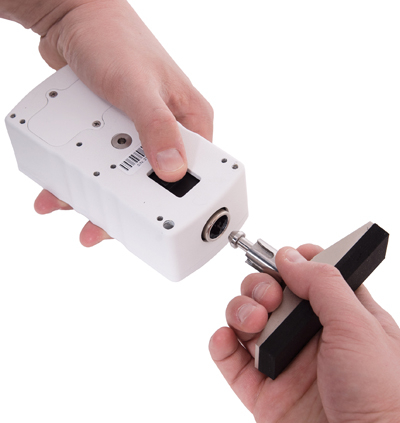

- Click-Lock accessory mounting technology
- USB data output
- High / low limit indicators, for pass / fail and minimum force testing
- Averaging mode calculates average force over a period of time
- 5,000-point data memory - data points may be saved individually or logged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESUR Lite data collection software.
- Statistical calculations for saved data points
