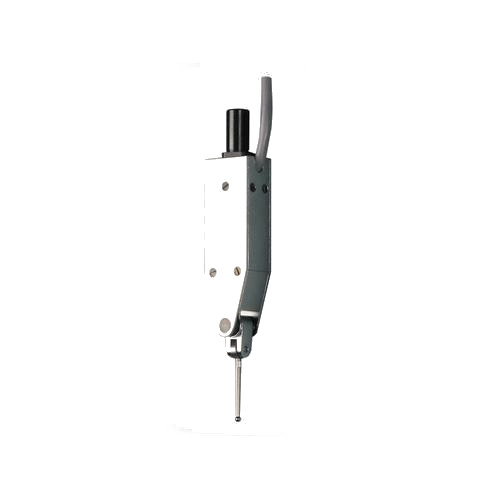

Buy Mahr 5313180KAL, 1318 Inductive Probe

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features:

Dial test indicator inductive probe
Flexible probe adjustment to contact surface
Highly robust as the measuring system is recessed from the guide and mounting shaft
Outstanding clamping properties
Chemical resistance data: resistant to oil, gasoline, water and aliphatic compounds. Moderately resistant to acids, bases, solvents and ozone

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Measuring Range from	-0.3 mm
Measuring Range up to	1 mm
Distance of lower stop MAX	-0.37 mm
Distance of upper stop MAX	1.6 mm
Measuring force	0,25 N +/- 0,05 N
Increase in measuring force	0,04 N/mm
Sensitivity deviation	0.5 %
Repeatability fw (microm)	0.03 microm
Hysteresis fu (microm)	0.5 microm
Linearity deviation within +/- 0,3 mm	0.9 microm
IP protection category	IP 50
Cable length	1.5 m
Compatibility	Mahr LVDT

Measuring Range from	-0.3 mm
Measuring Range up to	1 mm
Distance of lower stop MAX	-0.37 mm
Distance of upper stop MAX	1.6 mm
Measuring force	0,25 N +/- 0,05 N
Increase in measuring force	0,04 N/mm
Sensitivity deviation	0.5 %
Repeatability fw (microm)	0.03 microm
Hysteresis fu (microm)	0.5 microm
Linearity deviation within +/- 0,3 mm	0.9 microm
IP protection category	IP 50
Cable length	1.5 m
Compatibility	Mahr LVDT

Note: Please read description carefully. Do not base your order on the picture presented.
