Mahr 4346200 Millimess 2100 230V Switchable Inductive Dial Comparator

Mahr, 4346200, Millimess 2100 230V Switchable Inductive Dial Comparator with Background Lit Display

Features:

• Linearized inductive absolute measuring system
• Measurement electronic is compensated for temperature
• Power supply via the main power adapter
• MarConnect data output: choose either USB, OPTO RS232C, Digimatic
• Dial Comparator can be remotely operated via the interface (Opto RS232C)
• Control output compatible to Dial Comparators with limit contacts
• Operating and display unit (bezel) can be rotated through 280°
• Measuring force spring is interchangeable
• Lower stop is adjustable
• Protection class IP54 according to IEC 60529
• Operating temperature 5 - 40°C

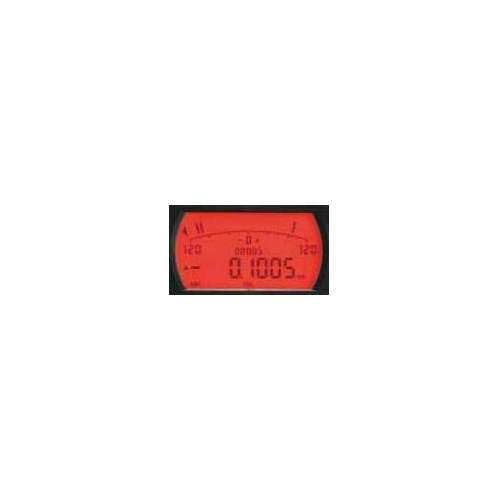

• High contrast background lit LCD with 6.5 mm high digits
• Analog display has a 4 mm long pointer which ensures better visual perception, ideal when checking concentricity and flatness and also to search for the reversal point when measuring bores

Functions:

• ON/OFF
• RESET (zero setting the digital and analog displays)
• 0 (set the analog display to zero)
• PRESET ( enter any numerical values)
• DATA (data transmission)
• mm/inch-switchable
• Reversal of counting direction
• RANGE (switch the meas. range and resolution)
• ABS (reference to elect. zero point)
• MAX / MIN memory, e.g. ideal to search for the reversal point
• MAX-MIN e.g. testing concentricity and flatness
• TOL (entering tolerance)
• LOCK: operating functions can be blocked via PC-Software

Supplied with:

• Mains adapter
• Rubber bellows
• Spanner for preliminary stroke setting
