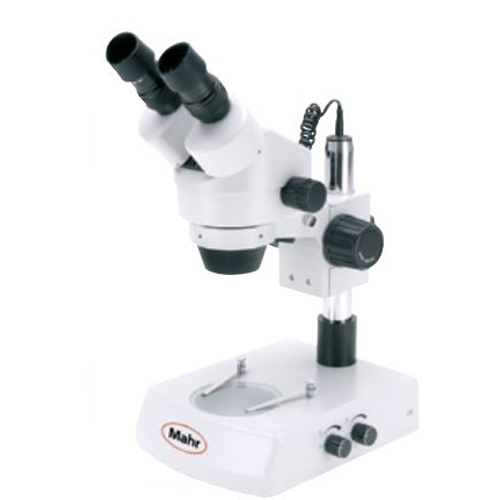

Mahr, 4245061, MarVision SM 150 Stereo-Zoom Microscope with 260 x 200mm Base

Includes

Features

High quality optics for light intensive and sharp three dimensional images
Continuously variable magnification due to the adjustable zoom lenses
Focusing with an ergonomic hand wheel, mounted either side, ideal for either a left or right handed operator
Prism head tilted to 45° and rotatable through 360°, adjustable pupillary distance (54 - 76 mm) with the dioptric adjustment
Integrated incident and transmitted illumination, continuously variable

Application: For the inspection of workpieces either on the production line and in the quality assurance

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Magnification	variable 7x - 45x (0.7 / 0.8 / 1 / 1.5 / 2 / 3 / 4 / 5)
Field of view (mm)	28 - 5
Observation tube angle	45°
Optical tube	Binocular
Working distance (mm)	75
Max. height of test piece (mm)	110
Illumination	12 V / 15 W Incident and transmitted light, variable
Base dimensions (mm)	260 x 200

Magnification	variable 7x - 45x (0.7 / 0.8 / 1 / 1.5 / 2 / 3 / 4 / 5)
Field of view (mm)	28 - 5
Observation tube angle	45°
Optical tube	Binocular
Working distance (mm)	75
Max. height of test piece (mm)	110
Illumination	12 V / 15 W Incident and transmitted light, variable
Base dimensions (mm)	260 x 200

Note: Please read description carefully. Do not base your order on the picture presented.
