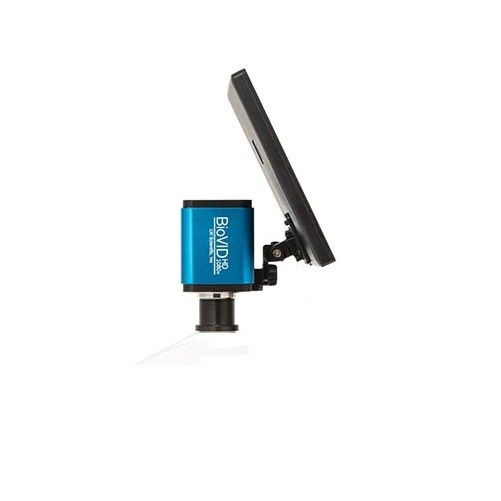

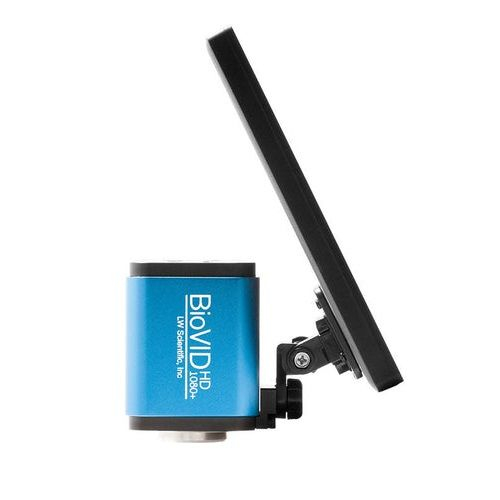

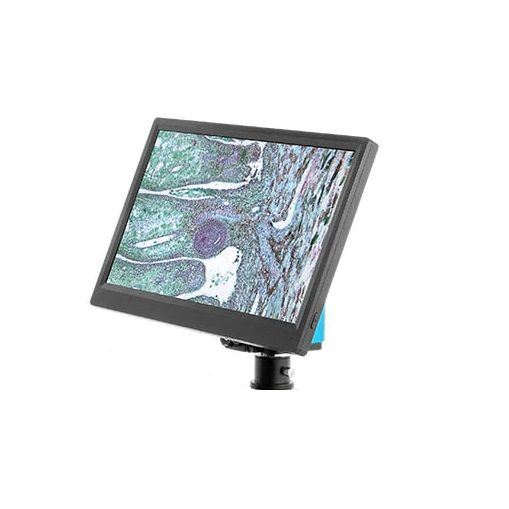

LW Scientific, BVP-SCRN-1163, BioView Camera and Monitor

BVP-SCRN-1163 Includes Only:

HDMI Cable
Biovid HD 1080+ Camera
Bioview Monitor
8G SD card
Power adapter
USB mouse with 1.3m cable
USB220-ATA | USB2.0 A cable - 2 meter
CD with camera driver and software

Applications:

Research, Teaching, & Demonstration
Pathology, Cytology, Oncology, Hematology, Semen Evaluation
Dental Applications
Industrial & Manufacturing

Features:

Panasonic super TFT LCD display
True 1080p resolution
16.7 million colors
High contrast ratio up to 1,000:1
LED backlight with 50000 hours lifetime
11.6-inch active view area
IPS full wide-angle viewing

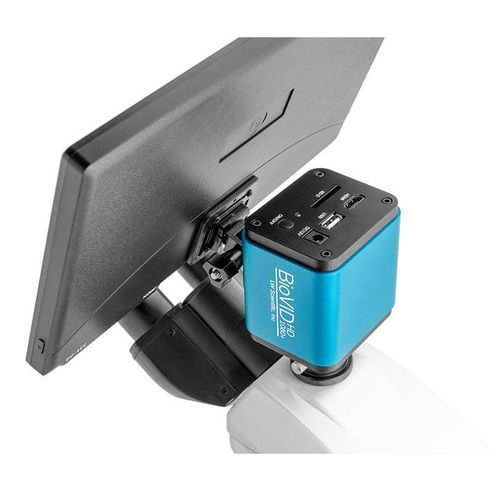

The BioVIEW microscope camera and monitor is the essential tool for live presentations and client education. The premium BioVID HD1080+ camera paired with the 1080p 11.6" HD Monitor provides a bright and beautiful image. Simply mount the camera onto any trinocular C-mount for amazing resolution and fast-action video (60fps). Using the included mouse and SD card, cli-ck to save and view images and videos…even view side-by-side comparisons.

Whether in a large lecture hall, a classroom, the laboratory, or the clinic, the BioVID HD 1080+ will ensure clients and students see microscope images clearly.

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Return and Warranty

Please note that return requests for LW Scientific items must be submitted within 14 days after the delivery date.

Technical Details

Reviews

Monitor Operating Environment

Operating Temp: -15º to 55º C
Humidity: 10-90%
Synchronization Range: 30-80 KHz horizontal, 55-75 Hz vertical
Power Supply: AC 110v-220v auto-switching input DC 12v /1a output
Power Consumption: Max 12w

Monitor Performance

Input: HDMI
Resolution: 1920 x 1080
Display Type: 16:9 ratio, 11.6 inch,
Active matrix super TFT LCD
Contrast Ratio: 1,000:1
Colors: 16.7 million
View Angle: IPS full view
Display Area: 258mm W x 145mm H
Pixel Pitch: 0.134mm W x 0.134mm H
Brightness: 350 CD/sq.m
Back Light: 5,000 hours
Dimensions: 281mm x 179 mm x 15.6 mm
Weigth: 400g

Camera Resolution

1920 x 1080

Camera Image Sensor

1 / 2.8" (5.5x3.4mm) Sony IMX236(C) CMOS color

Camera Pixel size

2.8um x 2.8um

Camera Auto-Exposure

0.1s-999ms

Camera Power

cUL / CE approved power adapter
AC Input: 100-240Vac 50/60Hz, 0.31A (Auto-switching power adapter)
DC Output: 12V, 1.0 amp

Camera Operation Condition

Temperature: -10°C ~ 50°C (14°F to 122°F)
Humidity: 30-80%RH

Camera Connection & Controls

USB Port: USB computer cable or USB mouse
HDMI Port: HDMI cable to TV
DC 12v Jack: 12v DC power in
SD Slot: For included SD card
ON/OFF: Power button
LED Light: Red=off; Blue=on

Camera Requirements

Operating System: Microsoft Windows XP, Vista, 7, 8, 10 (32 & 64 bit), Mac OSX, Linux
CPU: Intel Core2 2.5 or higher
Memory: > 4GB
USB 2.0 High-speed port

Camera Weight and Dimensions

Height: 3.6" (92mm)
Length: 2.8" (70mm)
Width: 3.1" (78mm)
Weight: 1.03lbs. (0.47kg)

Camera Video Output

HDMI:

User interface: USB mouse (included)
Image/Video Capture: SD card
Video: 60 frames per second at 1920x1080 (HDMI)
On screen-camera control panel and tool bar

USB:

Includes software for capturing, rotating,measuring, etc.
Image/video capture into PC
Image capture into Mac
Video: 30 frames per second at 1920x1080 (USB)
White balance and standard color controls
