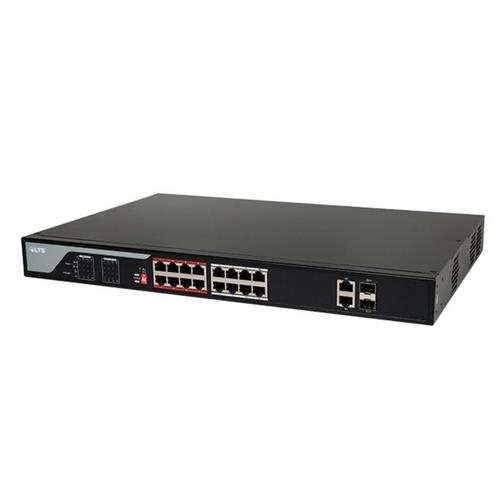

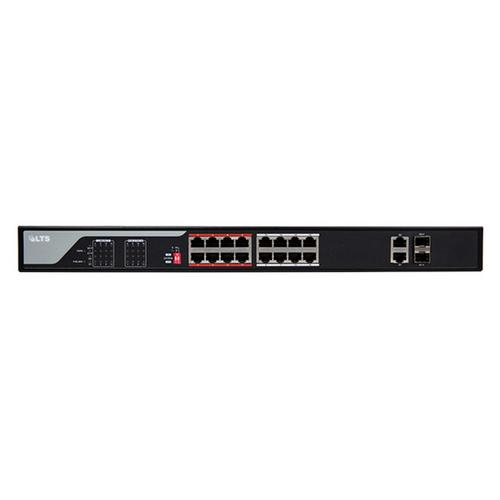

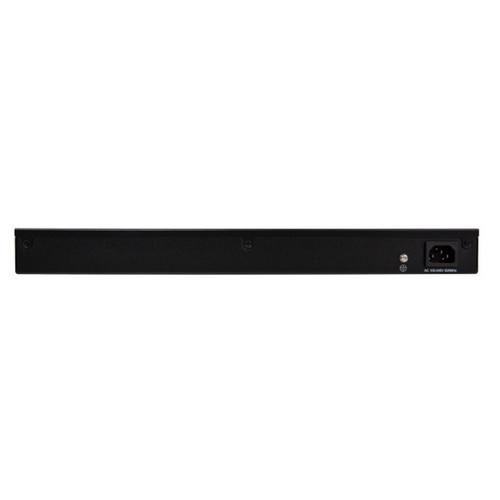

POE-SW1602, 16-Ports 100Mbps Unmanaged PoE Switch

Features

IEEE 802.3at and IEEE802.3af PoE compliant
Distance up to 820ft
Extend mode up to 820ft
16 PoE ports + 2 Uplink + 2 SFP
Provides up to 30 watts per PoE port
Supports PoE power up to 230W for all ports
4kV surge Protection for PoE ports
7.2 Gbps switching fabric
2.75 Mbits RAM Data Buffer
4K MAC address Entries
Metal Enclosure
Plug and Play Installation

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Ports
Network Ports	18
Standard
Network Protocol	IEEE802.3, 802.3u, 802.3x, 802.3af, 802.3at
Performance
Switching Capacity	7.2Gbps
Uplink Port	1000M Combo Port,2
Max. Forwarding Rate	5.36Mpps
High Priority Ports	Ports 1-8
Forwarding Mode	Store-and-forward
MAC Address Table	4k
Flow Control	IEEE802.3x full duplex
Power Over Ethernet
PoE Port	16
PoE Standard	802.3af, 802.3at
PoE Power Budget	230W
Working Mode	Supports 8 pins powering
General
Power Supply	100-240V AC, 50/60Hz
Power Consumption	≤250W
Working Temperature	32°F ~ 104°F(0°- 40°)
Working Humidity	10 % ~ 90 %
Surge Protection	4KV
Dimensions	440 x 285 x 43mm(17.33" x 11.22"x 1.69")
Weight	≤ 3.72kg(8.14lb)

Product Details

Ports
Network Ports	18
Standard
Network Protocol	IEEE802.3, 802.3u, 802.3x, 802.3af, 802.3at
Performance
Switching Capacity	7.2Gbps
Uplink Port	1000M Combo Port,2
Max. Forwarding Rate	5.36Mpps
High Priority Ports	Ports 1-8
Forwarding Mode	Store-and-forward
MAC Address Table	4k
Flow Control	IEEE802.3x full duplex
Power Over Ethernet
PoE Port	16
PoE Standard	802.3af, 802.3at
PoE Power Budget	230W
Working Mode	Supports 8 pins powering
General
Power Supply	100-240V AC, 50/60Hz
Power Consumption	≤250W
Working Temperature	32°F ~ 104°F(0°- 40°)
Working Humidity	10 % ~ 90 %
Surge Protection	4KV
Dimensions	440 x 285 x 43mm(17.33" x 11.22"x 1.69")
Weight	≤ 3.72kg(8.14lb)

Note: Please read description carefully. Do not base your order on the picture presented.
