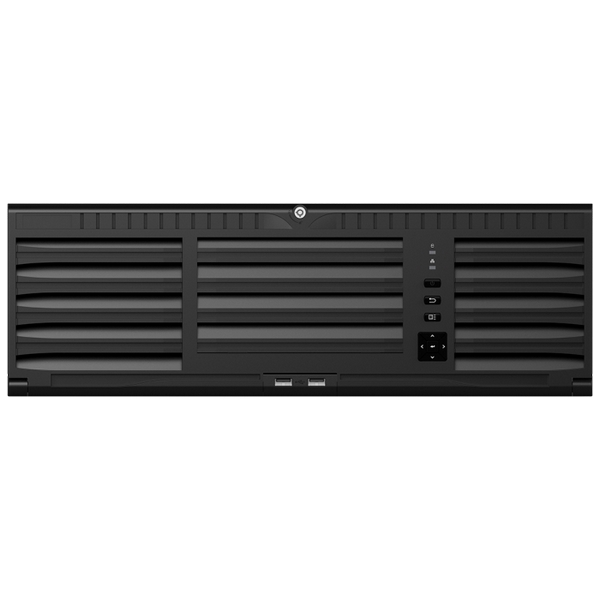

LTS LTN07256-R16(L) Platinum 256-Channel Enterprise Level NVR-P

The 256-channel LTN07256-R16(L) NVR-P makes HDD installation and maintenance simple & convenient. The unique chassis is based on a patented design that is environmentally friendly and features low noise output.

Note: (L) models no longer feature back decoding board, fiber board, or front panel screen

Features

• Professional embedded hardware and software, and pioneering dual-OS design, ensure high reliability
• Supports redundant power supply to improve stability
• ANR technology enhances storage reliability if the network gets disconnected
• Supports HDD hot swapping with RAID 0, 1, 5, 6, and 10 options
• Either normal or hot spare operating mode is configurable to constitute an N+1 hot spare system
• Compatible with third-party network cameras including Hikvision, ACTI, Arecont, AXIS, Bosch, Brickcom, Canon, ONVIF, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Vivotek, and Zavio
• Up to 256 IP cameras can be connected
• Supports live view, storage, and playback of connected cameras at up to 12 Megapixel resolution
• Simultaneous HDMI 1 / VGA output as the main output and the HDMI 2 works as the auxiliary output
• Video renders at up to 4K (4096 x 2160) resolution
• Supports decoding up to 20 channels at 1080p resolution
• Up to 16 SATA hard drives (up to 10 TB each) and one eSATA interface can be connected, for both recording and backup
• Four self-adaptive 10/100/1000 Mbps network interfaces
• Centralized management of IP cameras is supported, including configuration, information import/export, real-time information display, two-way audio, upgrades, and more
• Compatible with smart IP cameras and the recording, playing back, and backup of VCA alarms is also supported
• VCA detection alarm is supported
• VCA search for face detection, behavior analysis, people counting, and heat mapping
• Supports one-key recording
• Instant playback on assigned channels during multi-channel display mode
• Smart search for the selected area in the video; smart playback to improve playback efficiency
• Supports HDD quota and group modes; each capacity can be assigned to a specified channel
