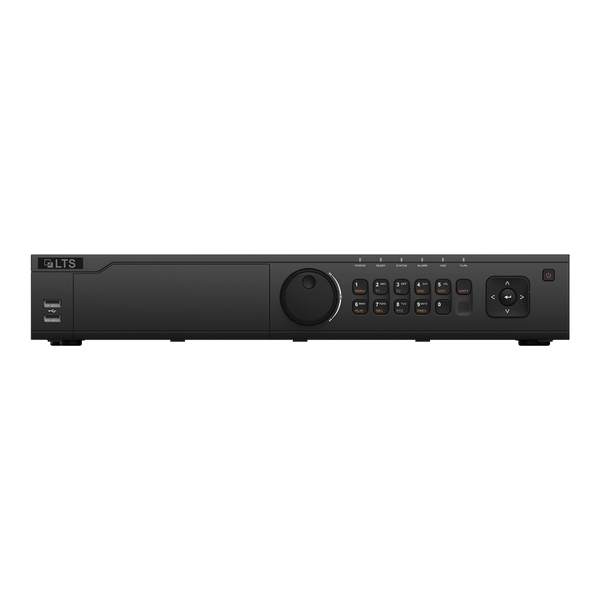

LTS LTD8416M-ST(S) Platinum 16-Channel DVR-P with Audio over Coax

  • Brand LTS
  • Part # LTD8416M-ST(S)
  • Model # Platinum
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

DVR-P 8 MP DVR, 16 analog channels; 18 channels at up to 12 MP, adjustable up to 34 chs.; 4 x SATA HDD connectors at up to 12 TB each (S) = Audio Over Coax

Features

  • Audio over coax
  • Up to 16 analog camera inputs and 4 SATA interfaces
  • H.264 / H.264+ / H.265 / H.265 Pro / H.265 Pro+ video compression
  • Up to 8 MP at 8 fps / 5 MP at 12 fps encoding capability
  • HD-TVI / AHD / CVI / CVBS / IP video inputs
  • Up to 34 network camera inputs
  • POS-triggered recording and POS information overlay
  • RAID 0, 1, 5, 6, 10 for even more reliable data storage, radically reduces risks of data loss
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Reviews
ParameterPlatinum 16-Channel DVR-P with Audio over Coax
Recording
Video CompressionsH.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Encoding Resolutions8 MP / 3K / 5 MP / 4 MP / 3 MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF
Frame Rates (Main Stream)8 MP at 8 fps; 3K at 12 fps; 5 MP at 12 fps; 4 MP at 15 fps; 3 MP at 18 fps;
1080p / 720p / WD1 / 4CIF / VGA / CIF at 25 fps (P) / 30 fps (N)
Frame Rates (Sub-Stream)WD1 / 4CIF / CIF at 25 fps (P) / 30 fps (N)
Video Bitrate32 Kbps to 10 Mbps
Dual-StreamSupported
Stream TypeVideo / Video & Audio
Audio CompressionG.711 u
Audio Bitrate64 Kbps
Video and Audio
IP Video Input18 channels (up to 34), up to 12 MP; supports H.265+ / H.265 / H.264+ / H.264 IP cameras
Analog Video Input16 channels, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input3K; 4 & 5 MP; 3, 4, 5, 8 MP; 1080p at 25/30 fps; 720p at 25/30/50/60 fps
AHD Input4 & 5 MP; 720p at 25/30 fps; 1080p at 25/30 fps
HDCVI Input4 MP; 720p at 25/30 fps; 1080p at 25/30 fps
CVBS InputPAL / NTSC
CVBS Output1 ch, BNC (1.0 Vp-p, 75 Ω); PAL: 704 × 576; NTSC: 704 × 480
HDMI 1 Output1 ch; 1920 × 1080 / 1280 × 1024 / 1280 × 720 / 1024 × 768 at 60 Hz
HDMI 2 Output1 ch; 4K (3840 × 2160) at 30 Hz; 2K (2560 × 1440) at 60 Hz;
1920 × 1080 / 1280 × 1024 / 1280 × 720 / 1024 × 768 at 60 Hz
VGA Output1 ch; 1920 × 1080 / 1280 × 1024 / 1280 × 720 / 1024 × 768 at 60 Hz
Video Output ModeHDMI1 / VGA simultaneous output; HDMI2 / VGA independent output
Audio Input4 ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output2 ch, RCA (Linear, 1 KΩ)
Two-Way Audio1 ch, RCA (2.0 Vp-p, 1 KΩ), independent
Synchronous Playback16 channels
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
ParameterPlatinum 16-Channel DVR-P with Audio over Coax
Recording
Video CompressionsH.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Encoding Resolutions8 MP / 3K / 5 MP / 4 MP / 3 MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF
Frame Rates (Main Stream)8 MP at 8 fps; 3K at 12 fps; 5 MP at 12 fps; 4 MP at 15 fps; 3 MP at 18 fps;
1080p / 720p / WD1 / 4CIF / VGA / CIF at 25 fps (P) / 30 fps (N)
Frame Rates (Sub-Stream)WD1 / 4CIF / CIF at 25 fps (P) / 30 fps (N)
Video Bitrate32 Kbps to 10 Mbps
Dual-StreamSupported
Stream TypeVideo / Video & Audio
Audio CompressionG.711 u
Audio Bitrate64 Kbps
Video and Audio
IP Video Input18 channels (up to 34), up to 12 MP; supports H.265+ / H.265 / H.264+ / H.264 IP cameras
Analog Video Input16 channels, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input3K; 4 & 5 MP; 3, 4, 5, 8 MP; 1080p at 25/30 fps; 720p at 25/30/50/60 fps
AHD Input4 & 5 MP; 720p at 25/30 fps; 1080p at 25/30 fps
HDCVI Input4 MP; 720p at 25/30 fps; 1080p at 25/30 fps
CVBS InputPAL / NTSC
CVBS Output1 ch, BNC (1.0 Vp-p, 75 Ω); PAL: 704 × 576; NTSC: 704 × 480
HDMI 1 Output1 ch; 1920 × 1080 / 1280 × 1024 / 1280 × 720 / 1024 × 768 at 60 Hz
HDMI 2 Output1 ch; 4K (3840 × 2160) at 30 Hz; 2K (2560 × 1440) at 60 Hz;
1920 × 1080 / 1280 × 1024 / 1280 × 720 / 1024 × 768 at 60 Hz
VGA Output1 ch; 1920 × 1080 / 1280 × 1024 / 1280 × 720 / 1024 × 768 at 60 Hz
Video Output ModeHDMI1 / VGA simultaneous output; HDMI2 / VGA independent output
Audio Input4 ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output2 ch, RCA (Linear, 1 KΩ)
Two-Way Audio1 ch, RCA (2.0 Vp-p, 1 KΩ), independent
Synchronous Playback16 channels
Note

Note: Please read description carefully. Do not base your order on the picture presented.
