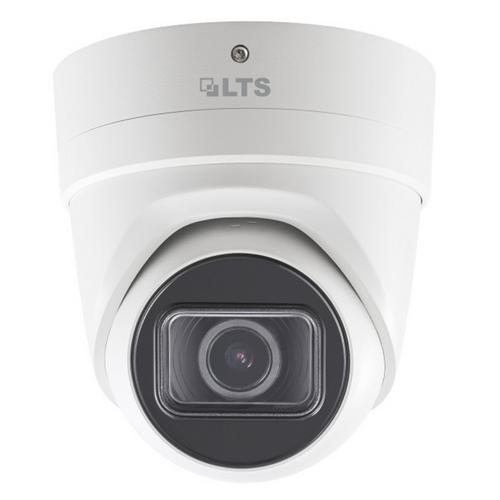

LTCMIP3863W-SZ, Platinum Varifocal Turret IP Camera - 6MP

Features

6MP High Definition
Up to 3072x2048at20fps
2.8-12mm Varifocal Motorized Lens with Smart Focus
0.018 Lux at F1.6
Matrix IR 2.0
IR Range up to 100 feet
H.265, H.265+, H.264, H.264+ Ready
True WDR 120dB
IP67 & IK10
MicroSD Slot up to 128GB
Audio I/O, Alarm I/O
DC 12V, PoE
Built-in Junction Box

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Reviews

Camera
Image Sensor	1/2.9" Progressive Scan CMOS
Min. Illumination	0.01 8 Lux at(F 1.6, AG C O N), 0 Lux with IR
Shutter Speed	1/3 s to 1/10,000 s
Lens	2.8-12mmatF1.6, Motorized Lens, Angle of viewÃ¯Â¼Å¡88° to 27°
Lens Mount	Φ14
Day & Night	IR cut filter
DNR	3D DNR
Wide Dynamic Range	120dB
Angle Adjustment	Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355°
Compression Standard
Video Compression	H.264 / MJPEG/H.264 Zip+
H.264 Type	Main Profile
Video Bit Rate	32 Kbps to 16 Mbps
Dual Stream	Support
Max. Resolution	3072 x 2048
Main Stream	50Hz: 20 fps (3072 x 2048, 3072 x 1728, 2944 x 1656), 25 fps (2560 x 1440, 1920 x 1080, 1280 x 720) 60Hz: 20 fps (3072 x 2048, 3072 x 1728, 2944 x 1656), 30fps (2560 x 1440, 1920 x 1080, 1280 x 720)
Sub Stream	50Hz: 25fps (640 x 480, 640 x 360, 320 x 240) 60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream	50Hz: 25fps (1280x720, 640x360, 352x288) 60Hz: 30fps (1280x720, 640x360, 352x240)
Network
Network Storage	Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion Detection, VideoTampering, Network Disconnected, IP Address Conflicted, Illegal Login, HDD Full, HDD error, alarm input, alarm output
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General	One key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
Standard	ONVIF (PROFILE S,PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Reset	Support
Smart Features
Behavioral Analysis	Line Crossing, Intrusion Detection
Face Detection	Support
Region of Interest	1 fixed region for main stream and sub-stream
General
Working Temperature /Humidity	-22 °F ~ 140 °F (-30 °C ~ 60 °C) Humidity 95% or less (non-condensing)
Power Supply	DC 12V ± 10%, PoE (802.3af)
Power Consumption	Max. 5.5W (Max. 7.5W with ICR on)
IR Range	Approx. 100ft (30 meters)
Weather Proof Ratings	IP67
Impact Protection	IK10
Dimensions	Φ 5 .35” x 5.73”(Φ 135.8 x 145.5 mm)
Weight	2.3 lbs (1060 g)

Product Details

Camera
Image Sensor	1/2.9" Progressive Scan CMOS
Min. Illumination	0.01 8 Lux at(F 1.6, AG C O N), 0 Lux with IR
Shutter Speed	1/3 s to 1/10,000 s
Lens	2.8-12mmatF1.6, Motorized Lens, Angle of viewÃ¯Â¼Å¡88° to 27°
Lens Mount	Φ14
Day & Night	IR cut filter
DNR	3D DNR
Wide Dynamic Range	120dB
Angle Adjustment	Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355°
Compression Standard
Video Compression	H.264 / MJPEG/H.264 Zip+
H.264 Type	Main Profile
Video Bit Rate	32 Kbps to 16 Mbps
Dual Stream	Support
Max. Resolution	3072 x 2048
Main Stream	50Hz: 20 fps (3072 x 2048, 3072 x 1728, 2944 x 1656), 25 fps (2560 x 1440, 1920 x 1080, 1280 x 720) 60Hz: 20 fps (3072 x 2048, 3072 x 1728, 2944 x 1656), 30fps (2560 x 1440, 1920 x 1080, 1280 x 720)
Sub Stream	50Hz: 25fps (640 x 480, 640 x 360, 320 x 240) 60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream	50Hz: 25fps (1280x720, 640x360, 352x288) 60Hz: 30fps (1280x720, 640x360, 352x240)
Network
Network Storage	Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion Detection, VideoTampering, Network Disconnected, IP Address Conflicted, Illegal Login, HDD Full, HDD error, alarm input, alarm output
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General	One key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
Standard	ONVIF (PROFILE S,PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Reset	Support
Smart Features
Behavioral Analysis	Line Crossing, Intrusion Detection
Face Detection	Support
Region of Interest	1 fixed region for main stream and sub-stream
General
Working Temperature /Humidity	-22 °F ~ 140 °F (-30 °C ~ 60 °C) Humidity 95% or less (non-condensing)
Power Supply	DC 12V ± 10%, PoE (802.3af)
Power Consumption	Max. 5.5W (Max. 7.5W with ICR on)
IR Range	Approx. 100ft (30 meters)
Weather Proof Ratings	IP67
Impact Protection	IK10
Dimensions	Φ 5 .35” x 5.73”(Φ 135.8 x 145.5 mm)
Weight	2.3 lbs (1060 g)
