LTS LTCMHT1953N-Z Platinum Motor. Varifocal Turret HD-TVI Camera 5MP

  • Brand LTS
  • Part # LTCMHT1953N-Z
  • Model # Platinum
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

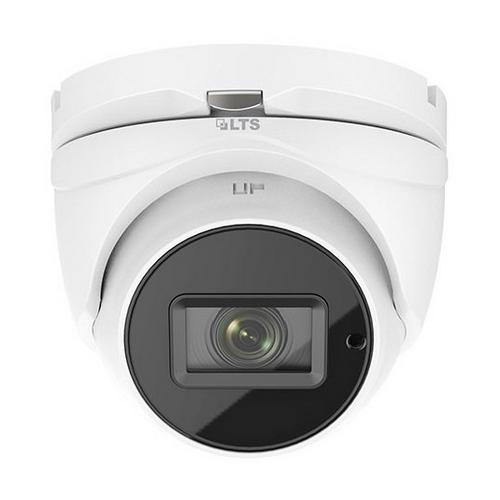

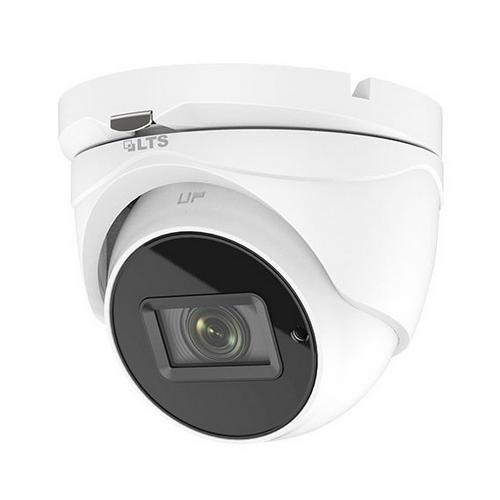

CMHT1953N-Z, Platinum Motorized Varifocal Turret HD-TVI Camera 5MP

Features:

  • High Definition Turret 5MP HD-TVI Camera
  • 2.8-12mm Varifocal Motorized Lens
  • 2560x1944 at 20fps
  • 0.01 Lux, Smart IR
  • 6 Matrix IR 2.0 LED up to 131ft
  • UTC Control to OSD Menu
  • DC 12V
  • IP67
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer

Technical Details

Reviews
CAMERA
Image Sensor1/2.7" CMOS
Signal SystemNTSC/PAL
Effective Pixels2560(H)*1944(V)
Min. Illumination0.01 Lux, 0 Lux with IR
Lens2.8-12mm Motorized Varifocal Lens; FoV 90°~28°
Shutter Speed1/30(1/25)s to 1/50,000s
Day and NightICR
SynchronizationInternal
Video Frame Rate2560 x 1944 at 20fps
HD Video Output1 HD-TVI Output
S/N RatioMore than 62dB
MENU
AGCSupport
D/N ModeAuto / Color / BW
White BalanceATW / MWB
BLCSupport
FunctionBrightness, Sharpness, Digital noise reduction, Mirror, Smart IR
GENERAL
Working Temperature / Humidity-40 °F ~ 140 °F (-40 °C ~ 60 °C)
Humidity 90% or less (non-condensing)
Power SupplyDC 12V
Power ConsumptionMax. 6W
Weather Proof RatingsIP67
IR RangeUp to 131ft (40m)
Dimensions5.3" x 4.9" x 4.4" (134.3 x 123.9 x 111.4 mm.)
Weight1.6lb (750g)
Product Details
CAMERA
Image Sensor1/2.7" CMOS
Signal SystemNTSC/PAL
Effective Pixels2560(H)*1944(V)
Min. Illumination0.01 Lux, 0 Lux with IR
Lens2.8-12mm Motorized Varifocal Lens; FoV 90°~28°
Shutter Speed1/30(1/25)s to 1/50,000s
Day and NightICR
SynchronizationInternal
Video Frame Rate2560 x 1944 at 20fps
HD Video Output1 HD-TVI Output
S/N RatioMore than 62dB
MENU
AGCSupport
D/N ModeAuto / Color / BW
White BalanceATW / MWB
BLCSupport
FunctionBrightness, Sharpness, Digital noise reduction, Mirror, Smart IR
GENERAL
Working Temperature / Humidity-40 °F ~ 140 °F (-40 °C ~ 60 °C)
Humidity 90% or less (non-condensing)
Power SupplyDC 12V
Power ConsumptionMax. 6W
Weather Proof RatingsIP67
IR RangeUp to 131ft (40m)
Dimensions5.3" x 4.9" x 4.4" (134.3 x 123.9 x 111.4 mm.)
Weight1.6lb (750g)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
