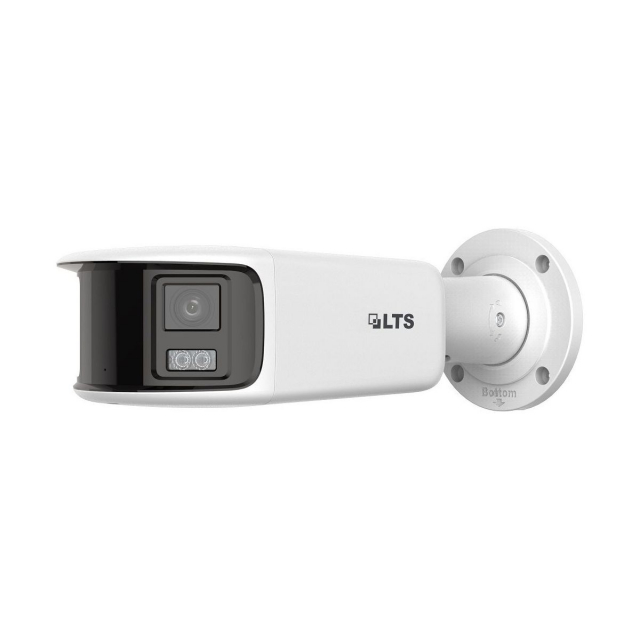

| Camera | - Image Sensor: 2 × 1/1.8" Progressive Scan CMOS
- Max. Resolution: 5120 × 1440
- Min. Illumination: 0.0005 Lux @ F1.0 (AGC on), 0 Lux with supplemental light
- Shutter Speed: 1/3 to 1/100,000 sec.
- Angle Adjustment: Pan 0°-355°, Tilt 0°-90°, Rotate 0°-360°
|

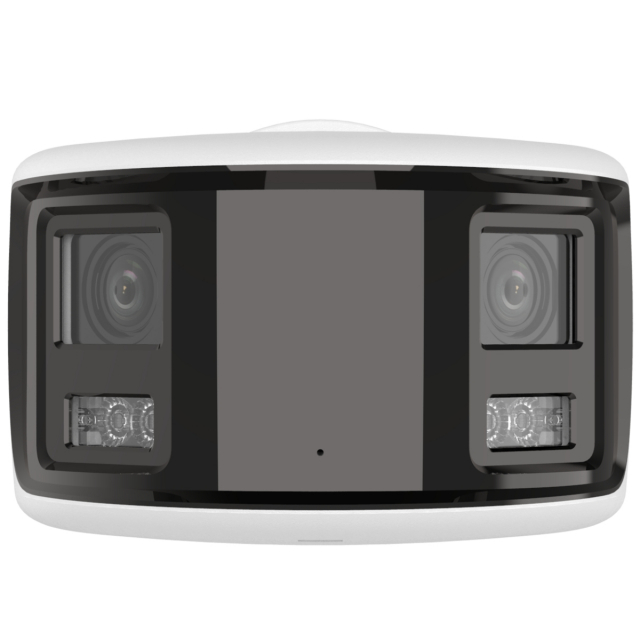

| Lens | - Type: Fixed focal dual lens, 4 mm
- Field of View: Horizontal 180° ±10°, Vertical 44°
- Lens Mount: M16
- Iris Type: Fixed
- Aperture: F1.0
- Depth of Field: 3.6 m to ∞
|
| DORI | - Detection: 77 m (250 ft)
- Observation: 30 m (100 ft)
- Recognition: 15 m (50 ft)
- Identification: 7 m (20 ft)
|
| Supplemental Lighting | - Type: White Light
- Range: Up to 40 m (131 ft)
- Technology: Smart
|
| Video | - Main Stream (WDR On): 12.5 fps @ 50 Hz / 15 fps @ 60 Hz (5120 × 1440)
- Main Stream (WDR Off): 20 fps (5120 × 1440)
- Sub-Stream (WDR On): 12.5 fps @ 50 Hz / 15 fps @ 60 Hz (1920 × 536, 960 × 272)
- Sub-Stream (WDR Off): 20 fps (1920 × 536, 960 × 272)
- Compression: H.265+ / H.265 / H.264+ / H.264
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Profile: Baseline / Main / High
- H.265 Profile: Main
- Bit Rate Control: CBR / VBR
- SVC: H.264 and H.265 encoding
- ROI: 1 fixed region (main stream)
|
| Audio | - Audio Type: Mono
- Compression: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
- Bit Rates: 16-320 Kbps (codec dependent)
- Sampling Rates: 8 / 16 / 32 / 44.1 / 48 kHz
- Environmental Noise Filtering: Yes
|
| Network | - Protocols: TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS, PPPoE, SNMP
- Simultaneous Live View: Up to 6 channels
- API: ONVIF (Profile S, G, T), ISAPI, SDK, ISUP
- User/Host: Up to 32 users (Administrator, Operator, User)
- Security: HTTPS, 802.1X (EAP-MD5), IP filter, TLS 1.2, MAC authentication, audit log
- Network Storage: NAS (NFS, SMB/CIFS), ANR, NVR
- Web Browsers: IE 10/11, Chrome 57+, Firefox 52+
|
| Image | - Image Parameter Switching: Yes
- Adjustments: Saturation, brightness, contrast, sharpness, gain, white balance
- Day/Night Switching: Day, Night, Auto, Schedule
- WDR: 130 dB
- SNR: ≥ 52 dB
- Image Enhancement: BLC, HLC, 3D DNR
|
| Interface | - Ethernet: 1 × RJ45 10/100 Mbps port
- On-Board Storage: MicroSD/SDHC/SDXC/TF up to 256 GB
- Built-in Microphone: Yes
- Built-in Speaker: 1 W, 97 dB @ 10 cm
- Audio I/O: 1 input / 1 output (terminal block)
- Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
- Reset Key: Yes
|
| Events & Deep Learning | - Basic: Motion detection, alarm I/O, flashing light, audible alarm, exception
- Smart: Line crossing, intrusion, region entrance/exit, scene change (human/vehicle classification)
- Perimeter Protection: Line crossing, intrusion, region entrance/exit
- Linkage: FTP/NAS upload, email, alarm output, recording, capture, audible warning, white light flashing
|
| General | - Power: 12 VDC ±25%, max. 9.5 W
- PoE: 802.3af Class 3, max. 10.5 W
- Materials: Metal (front cover, body, bracket)
- Dimensions: 4.7 × 4.1 × 12 in. (118.6 × 105.1 × 305.4 mm)
- Weight: Approx. 3.1 lb (1,420 g)
- Operating Conditions: -30°C to 60°C; ≤95% humidity
- Languages: 33 languages supported
- General Functions: Anti-flicker, heartbeat, password reset, one-key reset
- Flashing Light: Yes
- Protection Rating: IP67
|
| Certifications | - EMC: FCC Part 15 Subpart B, CE-EMC, RCM, ICES-003
- Safety: CB IEC 62368-1, CE-LVD EN 62368-1
- Environmental: CE-RoHS, WEEE, REACH
|
